TP-Link WiFi Access Point TL-WA801N, 2.4Ghz 300Mbps, Supports Multi-SSID/Client/Bridge/Range Extender, 2 Fixed Antennas, Passive PoE Injector Included

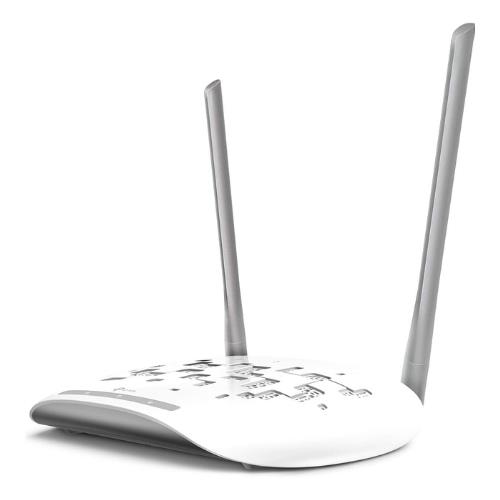

TP-Link TL-WA801N 300Mbps Wireless N Access Point

Key Features:

• Wireless N Speed (300Mbps): Provides fast 2.4 GHz Wi-Fi (802.11n) speeds of up to 300 Mbps, ideal for smooth HD video streaming, online gaming, and quick file downloads.

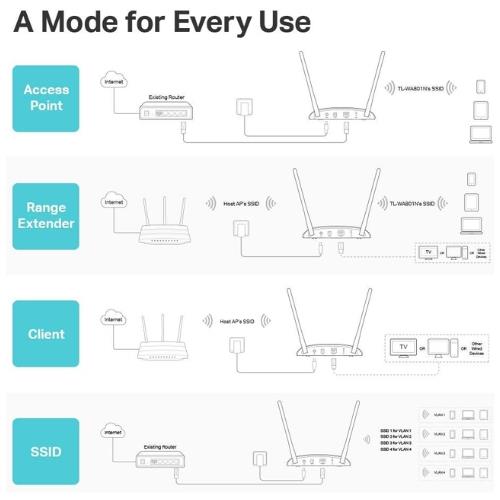

• Multiple Operation Modes: Offers versatile functionality to meet diverse networking needs:

  • Access Point (AP) Mode (Default): Transforms your existing wired network into a wireless one, allowing all your Wi-Fi devices to connect.

  • Range Extender Mode: Expands the coverage of an existing wireless signal into previously unreachable areas, effectively eliminating Wi-Fi dead zones.

  • Client Mode: Acts as a wireless adapter, allowing wired devices (such as smart TVs, game consoles, or desktop PCs) to connect to an existing wireless network wirelessly.

  • Multi-SSID Mode: Supports up to 4 separate SSIDs (Service Set Identifiers) and VLANs simultaneously, enabling the creation of distinct wireless networks for different user groups (e.g., staff, guests) with isolated access.

  • Bridge Mode (with AP): Allows wireless connection between two or more wired LANs, extending network connectivity over a wireless link.

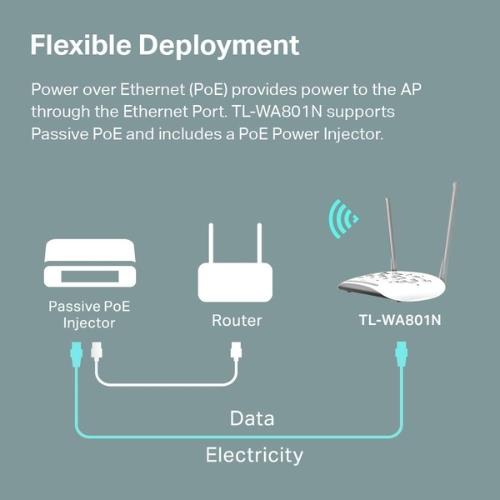

• Passive PoE Supported (Injector Included): Supports Passive Power over Ethernet (PoE) to deliver both electrical power and data simultaneously over a single Ethernet cable (up to 30 meters/100 feet). This simplifies deployment and installation, especially in areas where power outlets are limited or running separate power cables is inconvenient. A Passive PoE Injector is included in the package.

• 2 Fixed Antennas: Equipped with two fixed external antennas (5 dBi each) that help to extend and optimize the wireless signal for enhanced coverage and stable connections.

• Easy Setup and Management: Simple configuration via a user-friendly web interface and supports WPS (Wi-Fi Protected Setup) for quick and secure wireless connections.

• Robust Security: Supports various security protocols including 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryptions to safeguard your wireless network.

• WPS Button: Allows for one-touch secure wireless connection setup.

Technical Specifications:

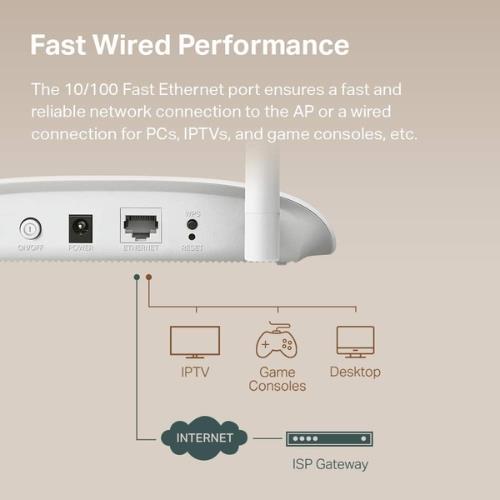

• Interface: 1 times 10/100 Mbps Ethernet Port (RJ45) (Supports Passive PoE)

• Buttons: Power On/Off Button, WPS/Reset Button

• External Power Supply: 9V/0.6A (Power Adapter included)

• Dimensions (W times D times H): 7.1 times 4.9 times 1.4 in (181.6 times 124.6 times 36.2 mm)

• Antenna Type: 2 Fixed Omni Directional Antennas (5 dBi each)

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency: 2.4 - 2.4835 GHz

• Signal Rate: Up to 300 Mbps

• Wireless Modes: Access Point, Range Extender, Client, Multi-SSID, Bridge

• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, MAC Address Filter, WMM, Wireless Statistics, Auto Channel Selection

• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering

• Quality of Service (QoS): WMM

• DHCP: DHCP Server, DHCP Client List

• Certifications: CE, FCC, RoHS

• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux.

• Environment:

  • Operating Temperature: 0℃~40℃ (32℉~104℉)

  • Storage Temperature: -40℃~70℃ (-40℉~158℉)

  • Operating Humidity: 10%~90% non-condensing

  • Storage Humidity: 5%~90% non-condensing

Package Contents (Typical):

• 300Mbps Wireless N Access Point TL-WA801N

• Power Adapter

• Passive PoE Power Injector

• RJ45 Ethernet Cable

• Quick Installation Guide
