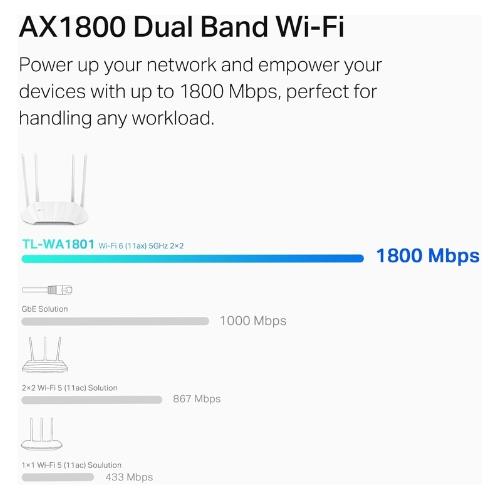

AX1800 Gigabit Wi-Fi 6 Speed: Delivers blazing-fast Wi-Fi 6 (802.11ax) speeds, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, combining for a total of 1775 Mbps for faster Browse, streaming, and downloading.

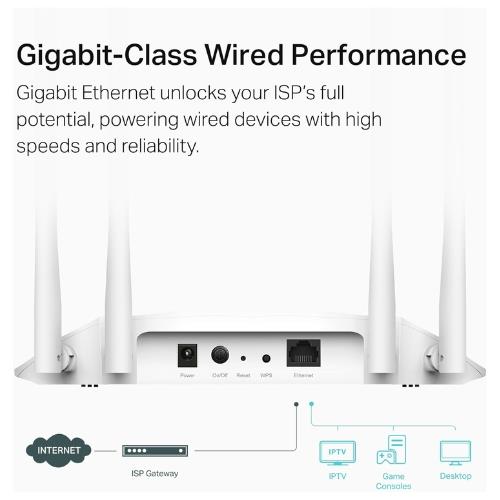

Gigabit Wired Performance: Equipped with a 10/100/1000 Mbps Gigabit Ethernet port to ensure maximum wired transfer rates from your internet service provider or for connecting wired devices like PCs, IPTVs, and game consoles with an ultra-fast connection.
High-Efficiency Wi-Fi 6 (HE80 & OFDMA): Leverages advanced Wi-Fi 6 technologies including support for 80 MHz channel bandwidth (HE80) on the 5 GHz band and OFDMA (Orthogonal Frequency Division Multiple Access) to significantly improve network efficiency and reduce latency, allowing more devices to connect simultaneously without compromising performance.

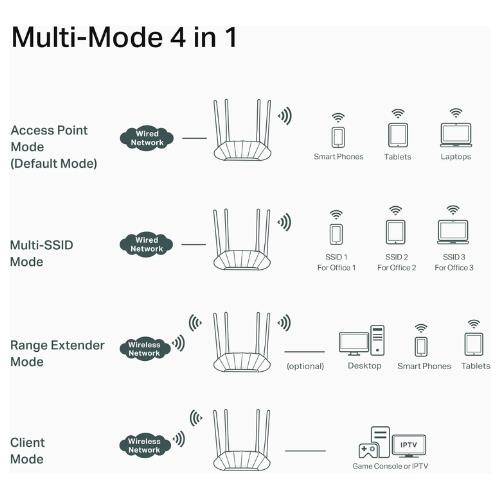

Multiple Operation Modes: Offers versatile deployment options to meet various network needs:
Access Point Mode (Default): Transforms your existing wired network into a wireless one, enabling all your Wi-Fi devices to connect.
Range Extender Mode: Expands the coverage of an existing wireless signal into previously unreachable areas, effectively eliminating Wi-Fi dead zones.
Multi-SSID Mode: Supports up to four separate SSIDs (Service Set Identifiers) and VLANs simultaneously, ideal for creating segmented networks for different users or departments (e.g., staff and guests) with different access policies.
Client Mode: Functions as a wireless adapter, allowing wired devices (such as smart TVs, game consoles, or desktop PCs) to connect to an existing wireless network.
Beamforming Technology: Concentrates Wi-Fi signals towards your connected devices, even those far away, extending reliable and strong Wi-Fi coverage to every corner of your home or office.
Boosted Coverage with 4 Fixed Antennas: Features four high-performance fixed external antennas that help to extend and optimize Wi-Fi signals for enhanced coverage and stable connections.
Passive PoE Powered: Supports Passive Power over Ethernet (PoE) via a 48V/0.375A input, allowing both electrical power and data to be transmitted over a single Ethernet cable. This simplifies deployment, especially in locations where power outlets are scarce or difficult to access. A Passive PoE Injector is typically included in the package.
WPA3 Security: Supports the latest Wi-Fi security protocol, WPA3, which brings new capabilities to improve cybersecurity in personal networks. It offers more secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks.
Captive Portal: Provides a designed portal page for heightened security and a user-friendly authentication interface to grant Wi-Fi access. This can also offer unique marketing opportunities for small businesses (e.g., cafes, salons) to promote their brand.
Desktop Design: Features a compact desktop form factor for easy placement on any flat surface.
Interface: 1 times 10/100/1000 Mbps Gigabit Ethernet Port (Supports Passive PoE)
Buttons: Power On/Off Button, WPS Button, Reset Button
External Power Supply: 48V/0.375A
Dimensions (W times D times H): 8.9 times 5.7 times 1.5 in (225 times 145.5 times 37 mm)
Antenna Type: 4 Fixed Antennas
Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz (Wi-Fi 6)
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: 1201 Mbps
2.4 GHz: 574 Mbps
Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control
Wireless Security: WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions
Quality of Service (QoS): WMM
DHCP: Server, DHCP Client List
Protocols: IPv4, IPv6
System Tools: SNMP, Ping Watchdog
Certifications: FCC, RoHS
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser.
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90% non-condensing

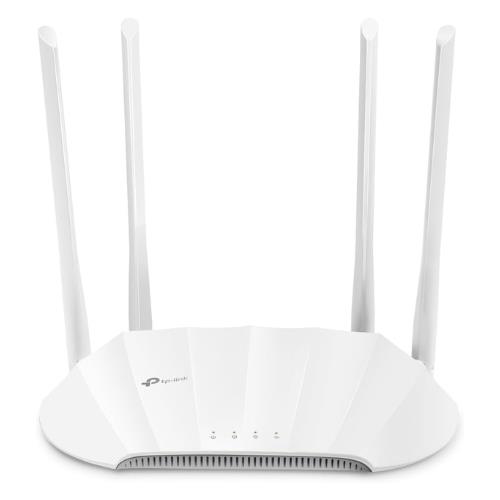

Wireless Access Point TL-WA1801
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
