AC1200 Dual-Band Wi-Fi: Provides fast Wi-Fi 5 (802.11ac) speeds, with 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, totaling up to 1167 Mbps for smooth streaming, gaming, and Browse.
Gigabit Wired Performance: Features a 10/100/1000 Mbps Gigabit Ethernet port to ensure maximum wired transfer rates from your internet service provider or for connecting wired devices like PCs, IPTVs, and game consoles for an ultra-fast connection.

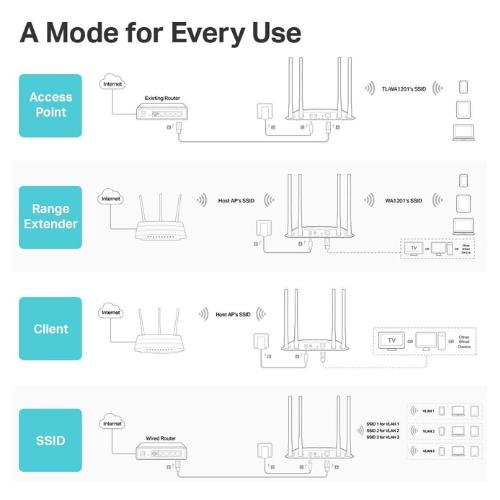

Multiple Operation Modes: Offers versatile deployment options to meet various network needs:
Access Point Mode (Default): Extends your existing wired network and makes it wireless, allowing you to connect all your Wi-Fi devices.
Range Extender Mode: Expands the coverage of an existing wireless signal into previously unreachable areas, eliminating Wi-Fi dead zones.
Multi-SSID Mode: Supports up to four separate SSIDs (Service Set Identifiers) and VLANs simultaneously, ideal for offices or homes where different departments or user groups share a Wi-Fi network and require isolation.
Client Mode: Acts as a powerful wireless adapter to connect your wired device (e.g., smart TV, game console) to an existing wireless network.

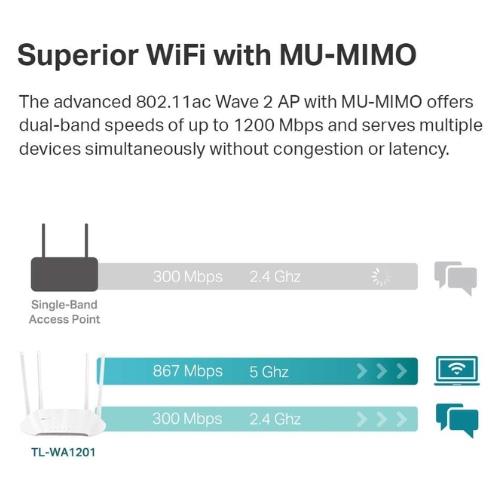

MU-MIMO Technology: Utilizes Multi-User Multiple-Input, Multiple-Output technology to simultaneously transfer data to multiple devices, significantly boosting network efficiency and throughput for 2$\times$ faster performance compared to standard AC devices.
Beamforming Technology: Employs Beamforming technology, which concentrates Wi-Fi signals towards your connected devices (even those far away), extending reliable Wi-Fi coverage to every corner of your home or office.
Boosted Coverage with 4 Fixed Antennas: Equipped with four high-performance fixed external antennas that help extend and concentrate the Wi-Fi signals for enhanced coverage and stability.
Passive PoE Powered: Supports Passive Power over Ethernet (PoE) to carry both electrical power and data simultaneously over a single Ethernet cable. This simplifies deployment and installation, especially in areas where power outlets may be limited or running separate power cables is inconvenient. A Passive PoE Injector is typically included in the package.
Captive Portal: Offers a designed portal page for enhanced security and a user-friendly authentication interface to grant Wi-Fi access, providing a unique marketing opportunity for small businesses to promote their brand.
Desktop Design: Features a compact desktop form factor for easy placement on any flat surface.
Robust Security: Supports various security protocols including 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA-PSK2 encryptions to secure your wireless network.
Interface: 1 times 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
Buttons: Power On/Off Button, WPS Button, Reset Button
External Power Supply: 12V/1.5A
Dimensions (W times D times H): 8.9 times 5.7 times 1.5 in (225 times 145.5 times 37 mm)
Antenna Type: 4 Fixed High Performance Antennas
Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: 867 Mbps
2.4 GHz: 300 Mbps (or 400 Mbps for version 3)
Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Quality of Service (QoS): WMM
DHCP: Server, DHCP Client List
Transmission Power:
CE: $\<20$ dbm="" _28_2.4="" _ghz29_2c_="" /><23$ dbm="" _28_5.15="" _ghz7e_5.25="" />
FCC: $\<30$ dbm="" _28_2.4="" ghz="" _26_="" 5="" />
Protocols: IPv4, IPv6
System Tools: SNMP, Ping Watch Dog
Certifications: CE, FCC, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux. Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser.
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

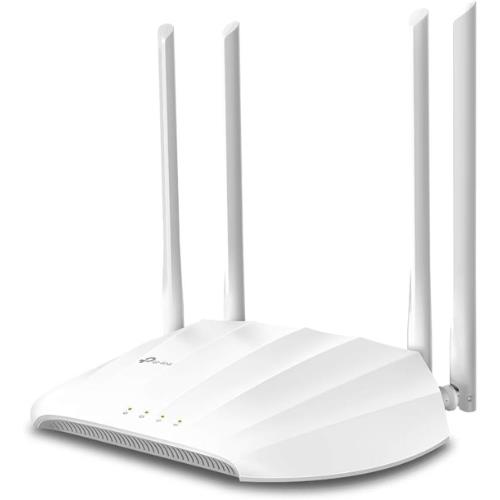

Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
