5 Gigabit RJ45 Ports: Equipped with 5 Auto-Negotiation 10/100/1000 Mbps RJ45 ports, enabling seamless transition to Gigabit Ethernet. It provides high-speed connections for devices like PCs, smart TVs, gaming consoles, and network-attached storage (NAS) devices.
Plug and Play: Offers hassle-free installation with no configuration required. Simply plug in your Ethernet cables and power adapter, and the switch is ready to extend your network instantly.
Auto MDI/MDIX: All ports support Auto MDI/MDIX, eliminating the need for crossover cables. This simplifies network setup and ensures compatibility with various Ethernet cable types.
Non-Blocking Switching Architecture: Features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. This ensures fast and reliable data transfer without bottlenecks, even for bandwidth-intensive tasks.
Green Ethernet Technology: Incorporates innovative energy-efficient technology that automatically adjusts power consumption based on the link status and cable length. This can save power consumption significantly (up to 85% for some versions), making it an eco-friendly solution.
Fanless Quiet Design: The fanless design ensures silent operation, making it suitable for deployment in any environment, including homes, quiet offices, and media rooms, without adding noise.

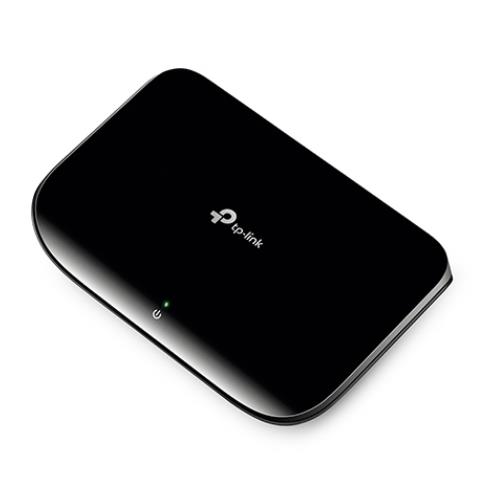

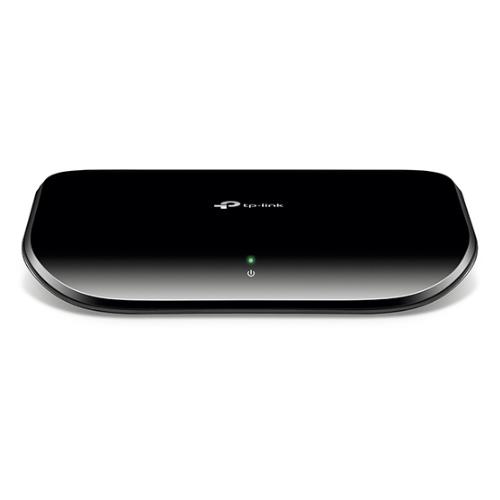

Desktop Design: Features a compact and sleek desktop design (plastic case) for easy placement on any flat surface or even wall-mounting.
Unmanaged Switch: A simple and straightforward unmanaged switch that requires no complex setup or software for basic network expansion and traffic management.
IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.
Jumbo Frame Support: Supports Jumbo Frames (up to 15 KB for some versions) which improves performance for large data transfers, beneficial for applications like video streaming and large file sharing.

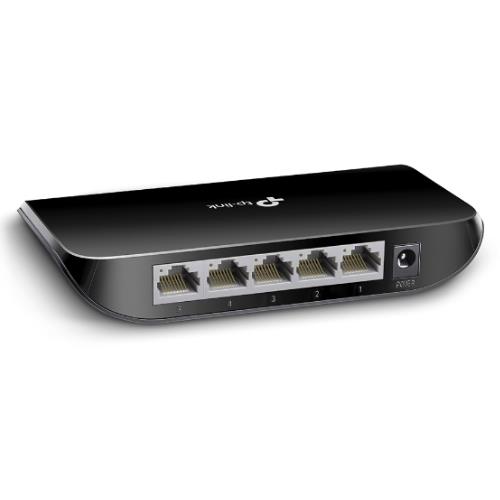

Interface: 5 times 10/100/1000 Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 5VDC / 0.6A or 9VDC / 0.6A depending on version)
Dimensions (W times D times H): 5.5 times 3.5 times 0.9 in. (140 times 88 times 23 mm)
Max. Power Consumption: 3.1W (220V/50Hz) or 2.4W (depending on version)
Max. Heat Dissipation: 10.57 BTU/h or 8.2 BTU/h (depending on version)
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 2K or 8K (depending on version)
Jumbo Frame: 15KB (or 16KB for some versions)
Transfer Method: Store and Forward
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
