5 Fast Ethernet Ports: Provides 5 10/100 Mbps RJ45 ports for expanding your wired network. Ideal for connecting multiple devices like computers, printers, gaming consoles, and smart TVs to your network.
Plug and Play: Offers hassle-free installation with no configuration required. Simply plug in your Ethernet cables and power adapter, and the switch is ready to go.
Auto MDI/MDIX: All ports support Auto MDI/MDIX, eliminating the need for crossover cables or uplink ports, simplifying network setup.
Non-Blocking Switching Architecture: Features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput, ensuring fast and reliable data transfer.
Green Ethernet Technology: Incorporates innovative energy-efficient technology that automatically adjusts power consumption according to the link status and cable length, saving power by up to 68%. This makes it an eco-friendly solution for your home or office.
Fanless Quiet Design: The fanless design ensures silent operation, making it suitable for any environment, including homes and quiet offices.

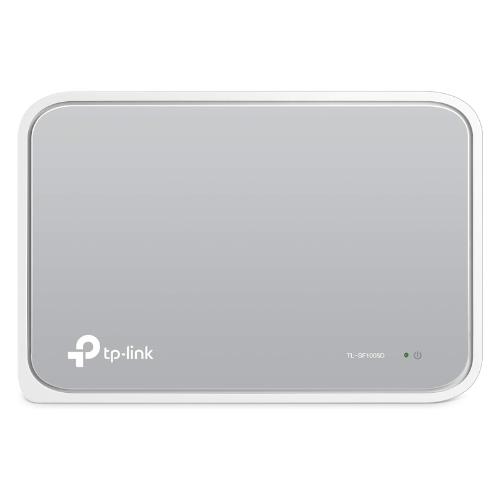

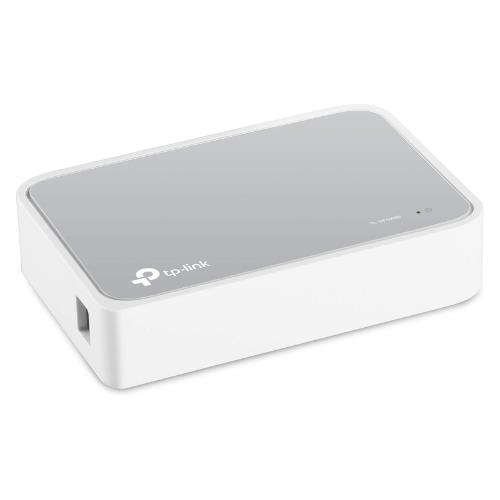

Desktop Design: Compact and sleek desktop design (white plastic case) allows for easy placement on any flat surface.
Unmanaged Switch: Simple and straightforward unmanaged switch, requiring no complex setup or software for basic network expansion.
IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.
Auto-Negotiation: Each port automatically senses the link speed of a network device (10 Mbps or 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Interface: 5 times 10/100 Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 5.0 VDC / 0.6 A)
Dimensions (W times D times H): 4.1 times 2.8 times 0.9 in. (103.5 times 70 times 22 mm)
Max. Power Consumption: 1.87W (220V/50Hz) or 1.48W (for some versions)
Max. Heat Dissipation: 6.38 BTU/h
Switching Capacity: 1.0 Gbps
Packet Forwarding Rate: 0.744 Mpps
MAC Address Table: 2K
Jumbo Frame: 10K (for some versions), 2K (for some versions)
Transfer Method: Store and Forward
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

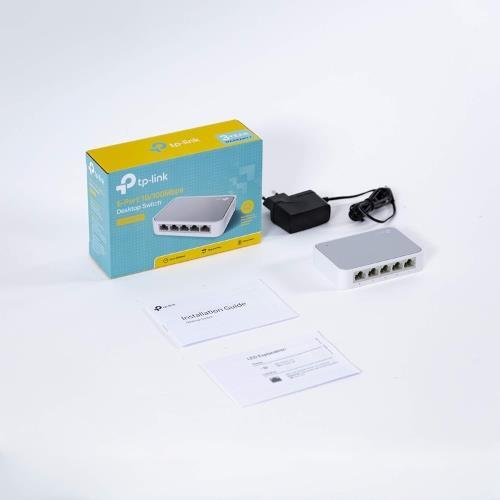

5-Port 10/100 Mbps Desktop Switch TL-SF1005D
Power Adapter
Installation Guide
