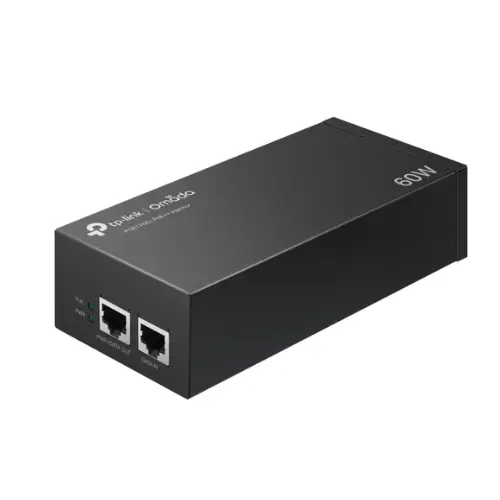

TP-Link TL-PoE170S 802.3at/af/bt Gigabit PoE Injector Non-PoE to PoE Adapter Supplies up to 60W (PoE++) Plug & Play Desktop/Wall-Mount Distance Up to 328 ft. UL Certified, Black

The Omada PoE++ Injector POE170S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply.* It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
  • Two Gigabit ports
  • Complies with IEEE802.3af/at/bt (type 3) standards, supplies up to 60 W
  • Transmitting data and power to PoE devices via an Ethernet cable
  • Wall-mounting and desktop design
Product Code: POE170S
Brand: Tp-link
Warranty: 1 Year
Availability: In Stock
Rs. 16,000

TP-Link TL-PoE170S 802.3at/af/bt Gigabit PoE Injector

Key Features:

  • High-Power PoE++ Standard Compliance: Fully compliant with IEEE 802.3bt/at/af PoE standards, making it capable of delivering high power to a wide range of Power over Ethernet devices.

  • Up to 60W PoE Power Output: Supplies up to 60W of power, enabling it to power high-power PoE devices such as 4K PTZ (Pan/Tilt/Zoom) IP cameras, touch screen VoIP phones, thin clients, and other PoE++ capable devices.

  • Gigabit Ethernet Connectivity: Equipped with one Gigabit Ethernet data input port and one Gigabit Ethernet PoE output port, ensuring high-speed data transmission at 10/100/1000 Mbps alongside power delivery.

  • Converts Non-PoE to PoE Adapter: Transforms a non-PoE Ethernet port (from a regular switch or router) into a PoE port, injecting both electrical power and data into a single Ethernet cable. This simplifies network infrastructure and reduces cabling costs for deployments in Islamabad.

  • Auto-Sensing Technology: Automatically detects the required power for connected 802.3bt, 802.3at, or 802.3af compliant Powered Devices (PDs), preventing damage from incorrect power levels.

  • Extended Distance: Supports PoE transmission distance up to 100 meters (328 ft.) over standard Cat5 (or higher) Ethernet cabling, offering flexibility in placing powered devices far from power outlets.

  • Plug & Play: Offers simple and hassle-free installation with no configuration required. Just connect the Ethernet cables and the power adapter for instant functionality.

  • Versatile Mounting Options: Features a compact, desktop-friendly design. It can also be easily wall-mounted, providing flexible placement options in various environments, from offices to outdoor installations (with appropriate housing) in Islamabad.

  • UL Certified: Provides assurance of safety and quality through UL certification.

  • LED Indicators: Equipped with LED indicators for Power, Link/Act, and PoE status, allowing for easy monitoring of the injector's operational state.

Technical Specifications:

  • Ports:

    • 1 times 10/100/1000 Mbps RJ45 Data In Port

    • 1 times 10/100/1000 Mbps RJ45 PoE Out Port

  • Network Media:

    • 10BASE-T: UTP category 3, 4, 5 cable (le 100m)

    • 100BASE-TX: UTP category 5, 5e cable (le 100m)

    • 1000BASE-T: UTP category 5, 5e, 6 cable (le 100m)

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x

  • LED Indicators: PWR, Link/Act, PoE

  • Basic Function:

    • Auto-Sensing for PoE Device

    • Auto-Negotiation on RJ45 port (10/100/1000 Mbps)

    • Auto MDI/MDIX

  • Power Output: Up to 60W

  • Power Input: 100-240 VAC, 50/60 Hz

  • External Power Adapter: Output: 55V DC, 1.1A

  • Dimensions (W 6.1 times 2.8 times 1.5 in (155 times 70 times 38 mm)

  • Operating Temperature: 0℃~40℃ (32℉~104℉)

  • Storage Temperature: -40℃~70℃ (-40℉~158℉)

  • Operating Humidity: 10%~90% non-condensing

  • Storage Humidity: 5%~90% non-condensing

  • Certifications: CE, FCC, RoHS, UL

  • Package Contents: TL-PoE170S Gigabit PoE Injector, Power Cord, Quick Installation Guide
