Gigabit Connectivity: Equipped with one Gigabit Ethernet input port and one Gigabit Ethernet output (PoE) port, ensuring high-speed data transmission at 10/100/1000 Mbps. This is ideal for connecting Gigabit-enabled PoE devices like high-resolution IP cameras, Gigabit wireless access points, or VoIP phones.
802.3af Power over Ethernet (PoE) Standard: Fully compliant with IEEE 802.3af PoE standard. It can automatically detect and supply power to 802.3af compliant Powered Devices (PDs).

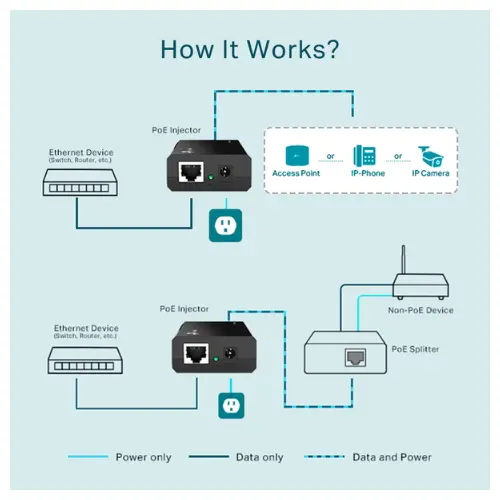

Converts Non-PoE to PoE: Acts as a PoE injector, allowing you to connect a non-PoE Ethernet switch or router to a PoE-compatible device. It supplies both power and data over a single Ethernet cable, simplifying network infrastructure and reducing cabling costs, particularly for deployments in Islamabad.

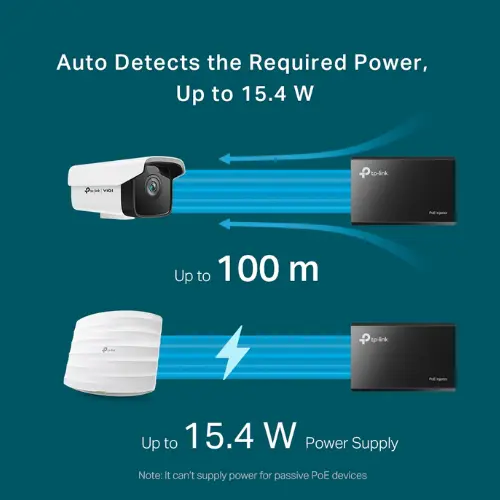

Automatic Power Detection: Intelligently detects the required power output for the connected PoE device, providing up to 15.4 W (watts) of power. This ensures safe and efficient power delivery without over or under-powering the device.
Extended Distance: Supports PoE transmission distance of up to 100 meters (328 ft.) over standard Cat5 (or higher) Ethernet cabling. This provides flexibility in placing PoE-powered devices in locations where power outlets are scarce or inconvenient.
Plug & Play: Offers simple and hassle-free installation with no configuration required. Just connect the Ethernet cables and the power adapter for instant functionality.
Compact and Wall-Mountable Design: Features a compact, desktop-friendly design. It can also be easily wall-mounted, providing flexible placement options in various environments, from homes to small offices in Islamabad.
LED Indicators: Equipped with LED indicators for Power, Link/Act, and PoE status, allowing for easy monitoring of the injector's operational state.
Cost-Effective Solution: Provides a cost-effective solution for deploying PoE devices without requiring an expensive PoE-enabled switch, making it an ideal choice for expanding existing networks with PoE capabilities.

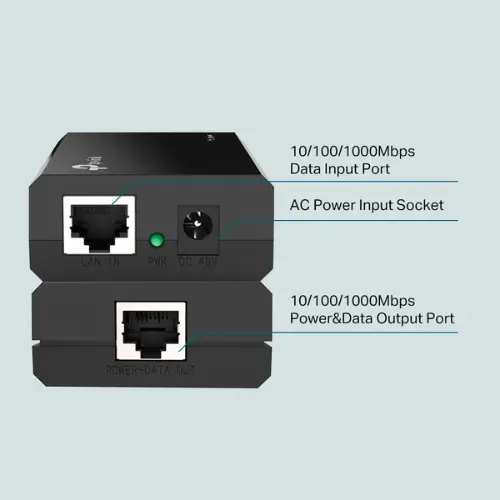

Port:
1 times 10/100/1000 Mbps RJ45 Data In Port
1 times 10/100/1000 Mbps RJ45 PoE Out Port
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
100BASE-TX: UTP category 5, 5e cable (max. 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (max. 100m)
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
LED Indicators: PWR, Link/Act, PoE
Basic Function:
Auto-Sensing for PoE Device
Auto-Negotiation on RJ45 port (10/100/1000 Mbps)
Auto MDI/MDIX
Power Output: 15.4 W (max.)
Power Input: 100~240V AC, 50/60Hz
External Power Adapter: Output: 48V DC, 0.32A
Dimensions (W times D times H): 3.3 times 2.0 times 1.3 in (85 times 48 times 34 mm)
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certifications: CE, FCC, RoHS
Package Contents: TL-PoE150S Gigabit PoE Injector, Power Adapter, Ethernet Cable, Quick Installation Guide.
