TP-Link OC300 Omada Hardware Controller | SDN Integrated | 2 Gigabit Port + 1 USB 3.0 Port | Manage Up to 500 Devices | Easy & Intelligent Network Monitor & Maintenance | Cloud Access & Omada App

Centralized Management for Access Points, Switches, and Routers
  • Centralized Management
  • On-Premises Management

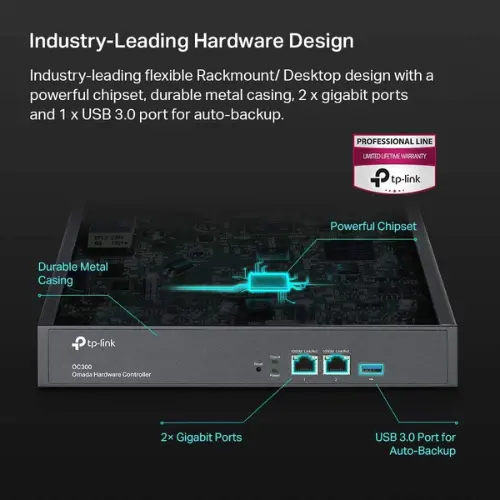

  • Industry-Leading Hardware Design
  • Easy and Intelligent Network Monitoring
Product Code: OC300
Brand: Tp-link
Warranty: 1 Year
Availability: In Stock
Rs. 52,000

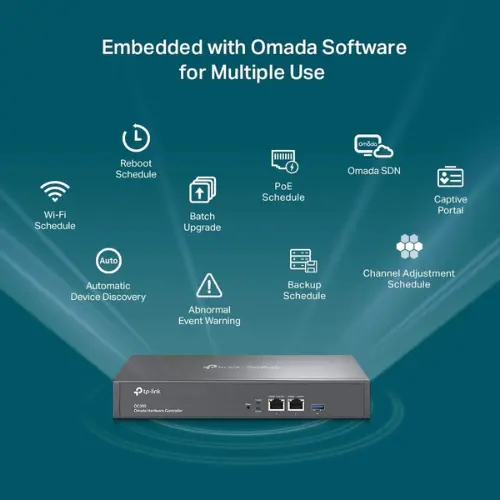

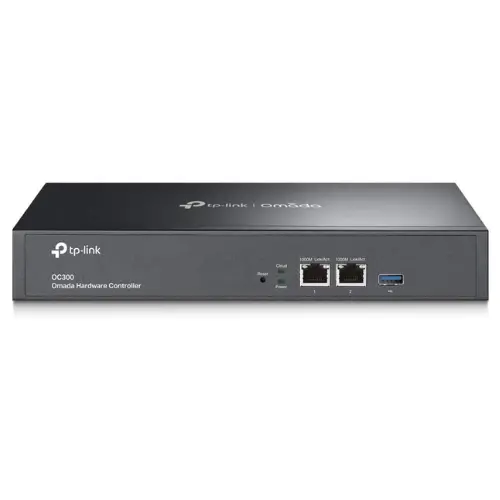

TP-Link Omada Hardware Controller OC300

Key Features:

  • Centralized Management for Omada SDN: The OC300 is a professional, on-premises hardware controller designed as the core component of the Omada Software Defined Networking (SDN) platform. It provides 100% centralized management of Omada Access Points, JetStream Switches, and Omada Routers from a single interface, streamlining network setup and administration for medium to large networks.

  • High Management Capacity: Capable of managing up to 500 Omada Access Points, 100 JetStream Switches, and 100 Omada Routers. It supports up to 15,000 clients, making it ideal for large-scale enterprise, hospitality, education, and retail environments.

  • Powerful Hardware Design: Equipped with a robust Quad-Core A72 processor running at 1.2 GHz, 2 GB DDR4 RAM, and 8 GB eMMC flash storage. This ensures high performance and stability for demanding network management tasks.

  • Dual Gigabit Ethernet Ports: Features two 10/100/1000 Mbps RJ45 Ethernet ports for high-speed connectivity to your network backbone.

  • USB 3.0 Port for Auto Backup: Includes a USB 3.0 port for automatically backing up your network configuration to an external flash drive, ensuring data safety and simplifying restoration processes.

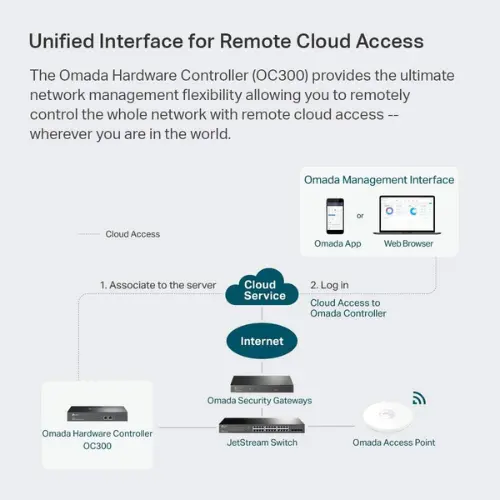

  • Free Cloud Access: Offers free cloud access to the Omada centralized management platform. This allows users to manage and monitor their network remotely from anywhere, at any time, using the Omada App or a web browser, without any licensing fees.

  • Easy & Intelligent Network Monitoring: Provides an intuitive dashboard for real-time network status, detailed network usage, and traffic distribution. It includes a real-time network topology map for quick visual troubleshooting and offers intelligent monitoring with abnormal event warnings and notifications.

  • Simplified Network Maintenance: Facilitates efficient network maintenance through various features, including:

    • WiFi Heatmap Simulator: Helps in optimizing wireless coverage.

    • Visualizable Network Report: Provides comprehensive insights into network performance.

    • Batch Configuration: Apply settings to multiple devices simultaneously.

    • Batch Firmware Upgrading: Streamline firmware updates across multiple devices.

    • Multi-Site Management: Manage multiple distinct networks from a single controller interface.

    • Powerful Scheduling: Schedule reboots, Wi-Fi ON/OFF, and PoE power for connected devices.

  • Rack-Mountable Design: Housed in a durable metal casing with a standard 1U rack-mountable design, complete with an included rackmount kit, making it suitable for installation in server rooms or network cabinets.

  • Plug and Play: Offers simple setup with no complex configuration required. Just connect it to your network and power it on for immediate management of Omada devices.

  • Advanced Guest Network Features: Supports advanced guest network options including a customizable captive portal with Facebook Wi-Fi, SMS login, and voucher authentication, enhancing user experience and branding.

Technical Specifications:

  • Interface:

    • 2 times 10/100/1000 Mbps RJ45 Ethernet Ports

    • 1 times USB 3.0 Port (for auto backup)

  • Power Supply: 100–240 V~50/60 Hz, 0.6 A (Internal Power Supply)

  • Dimensions (W 11.6 times 7.1 times 1.7 in (294 times 180 times 44 mm)

  • Power Consumption:

    • Typical: 9.0 W (no USB 3.0 connected)

    • Maximum: 14.8 W (with USB 3.0 connected)

  • Processor: Quad-Core A72 @ 1.2 GHz

  • Memory: 2 GB DDR4

  • Storage: 2MB Nor Flash; 8 GB eMMC

  • Management Capacity:

    • Max Sites: 100

    • Max Omada Access Points: 500

    • Max JetStream Switches: 100

    • Max Omada Routers: 100

    • Max Clients: 15,000

    • Max Accounts: 1,000 (Local/Cloud)

  • Management Features: Omada App, Centralized Management, Cloud Access, L3 Management, Multi-site Management, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration.

  • Certifications: CE, FCC, RoHS

  • Environment:

    • Operating Temperature: 0℃~50℃ (32℉~122℉)

    • Storage Temperature: -40℃~70℃ (-40℉~158℉)

    • Operating Humidity: 10%~90% RH non-condensing

    • Storage Humidity: 5%~90% RH non-condensing

  • System Requirements: Microsoft® Windows®10, 8, 7, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

  • Package Contents: Omada Hardware Controller OC300, Quick Installation Guide, Ethernet Cable, Power Cord, Rackmount Kit.
