Centralized Management for Omada SDN: The OC200 is a dedicated on-premises hardware controller designed for the Omada Software Defined Networking (SDN) platform. It provides 100% centralized management of Omada Access Points, JetStream Switches, and Omada Routers from a single interface, simplifying network setup and administration.
High Management Capacity: Capable of managing up to 100 Omada Access Points, 20 JetStream Switches, and 10 Omada Routers. It supports up to 1,000 clients, making it suitable for small to medium-sized business networks.
PoE Powered for Flexible Placement: Supports 802.3af/at Power over Ethernet (PoE) for power supply, allowing for flexible deployment without the need for a separate power adapter. It can also be powered by a Micro USB (DC 5V/Minimum 1A).

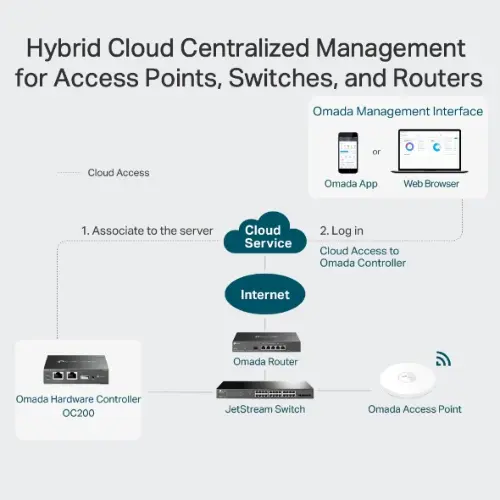

Free Cloud Access: Offers free cloud access to the Omada centralized management platform. This allows users to manage and monitor their network from anywhere, at any time, using the Omada App or a web browser, with no license fees.
Easy & Intelligent Network Monitoring: Features an intuitive dashboard that provides real-time network status, network usage, and traffic distribution. It includes real-time network topology for quick troubleshooting and offers intelligent monitoring with abnormal event warnings and notifications.
Simplified Network Maintenance: Facilitates network maintenance through features such as:
WiFi Heatmap Simulator: Helps in optimizing wireless coverage.
Visualizable Network Report: Provides insights into network performance.
Batch Configuration: Apply settings to multiple devices simultaneously.
Batch Firmware Upgrading: Streamline firmware updates across devices.
Multi-Site Management: Manage multiple distinct networks from a single controller.
Powerful Scheduling: Schedule reboots, Wi-Fi ON/OFF, and PoE power for devices.

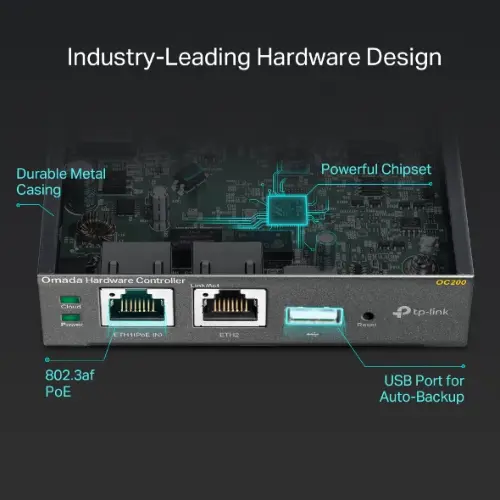

Industry-Leading Hardware Design: Equipped with a powerful dual-core A53 chipset (1.2 GHz) and a durable metal casing, ensuring robust performance and reliability. It includes a USB 2.0 port for automatic configuration backup to a flash drive.
Plug and Play: Offers simple setup with no complex configuration required. Just connect it to your network for immediate management of Omada devices.
Guest Network Features: Supports advanced guest network options including a captive portal with Facebook Wi-Fi, SMS login, and voucher authentication, ideal for hospitality or retail environments.

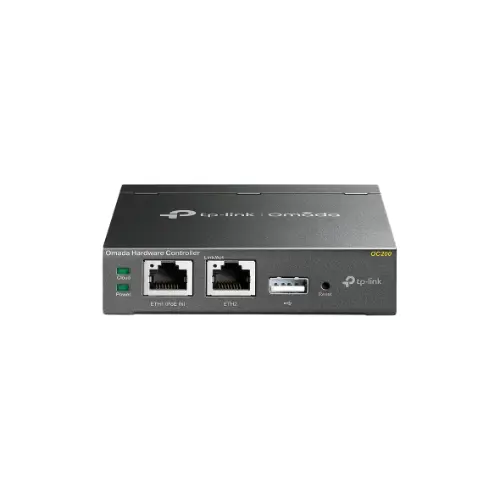

Interface:
2 times 10/100 Mbps Ethernet Ports
1 times USB 2.0 Port (for auto backup)
1 times Micro USB Port (for power)
Power Supply:
802.3af/at PoE
Micro USB (DC 5V / Minimum 1A)
Dimensions (W times D times H): 3.9 times 3.9 times 1.0 in (100 times 98 times 25 mm)
Power Consumption:
Maximum: 11.3 W (powered by PoE, with USB 2.0 connected)
Typical: 4.3 W (powered via Micro-USB port, no USB 2.0 connected)
Processor: Dual-Core A53 @ 1.2 GHz
Memory: 1 GB DDR3
Storage: 1MB Nor Flash; 4 GB eMMC
Management Capacity:
Max Sites: 100
Max Omada Access Points: 100
Max JetStream Switches: 20
Max Omada Routers: 10
Max Clients: 1,000
Management Features: Omada App, Centralized Management, Cloud Access, L3 Management, Multi-site Management, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, Wi-Fi Heatmap Simulator, Visualizable Network Report.
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~90% RH non-condensing
System Requirements: Microsoft® Windows®10, 8, 7, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Package Contents: Omada Hardware Controller OC200, Quick Installation Guide, Ethernet Cable.
