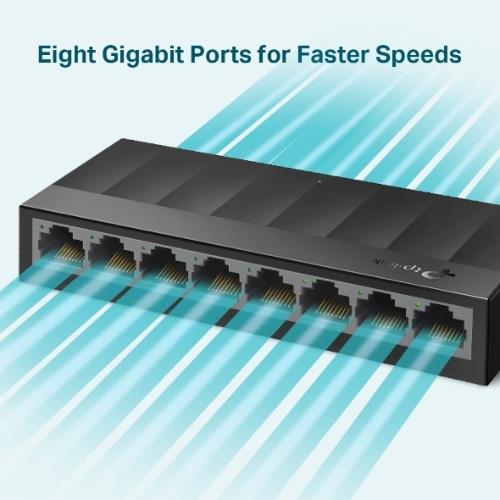

8 Gigabit RJ45 Ports: Provides 8 10/100/1000 Mbps Auto-Negotiation RJ45 ports, offering high-speed connections for extending your wired network. Ideal for connecting multiple bandwidth-intensive devices like computers, gaming consoles, NAS devices, 4K streaming players, and IPTVs.
Plug and Play: Offers hassle-free installation with no configuration or software required. Simply connect your Ethernet cables and the power adapter, and the switch is ready for immediate use.
Auto MDI/MDIX: All ports support Auto MDI/MDIX, eliminating the need for crossover cables. This simplifies network setup and ensures compatibility with different types of Ethernet cables.
Non-Blocking Switching Architecture: Features a non-blocking switching architecture that forwards and filters packets at full wire-speed (16 Gbps switching capacity) for maximum throughput. This ensures fast and reliable data transfer without bottlenecks.
Green Ethernet Technology: Incorporates innovative energy-efficient technology that automatically adjusts power consumption according to the link status and cable length. This helps save power and reduces your energy bill, making it an eco-friendly solution.

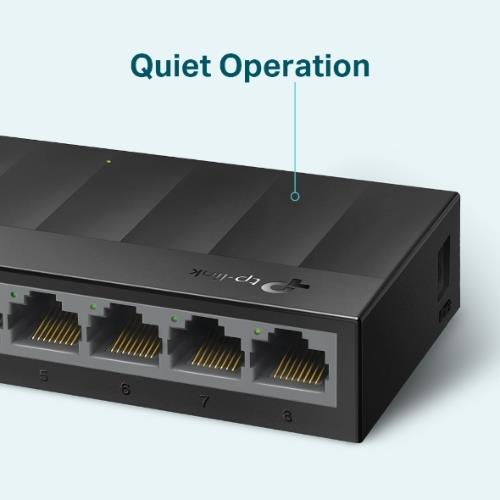

Fanless Quiet Design: The fanless design ensures silent operation, making it suitable for deployment in any environment, including homes, quiet offices, and media rooms, without adding noise.
Desktop/Wall-Mounting Design (Plastic Case): Features a compact and durable plastic casing with a versatile design that allows for easy placement on a desktop or convenient wall-mounting.
Unmanaged Switch: A simple and straightforward unmanaged switch, requiring no complex setup, configuration, or ongoing management for basic network expansion.
IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.
Jumbo Frame Support: Supports Jumbo Frames (up to 16 KB) which can improve the efficiency of large data transfers, beneficial for applications like video streaming and large file sharing.

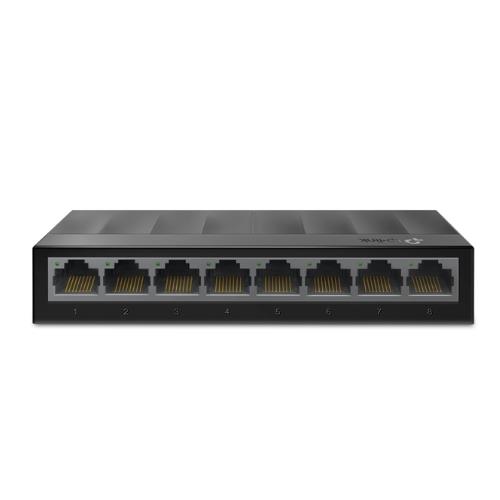

Interface: 8 times 10/100/1000 Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 5VDC / 0.6A or 9VDC / 0.6A depending on version)
Dimensions (W times D times H): 5.0 times 2.6 times 0.9 in. (127 times 66.5 times 23 mm)
Max. Power Consumption: 3.9W (for some versions), 2.7W (for other versions)
Max. Heat Dissipation: 13.299 BTU/h (for some versions)
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
MAC Address Table: 4K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
Transfer Method: Store and Forward
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉) or -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

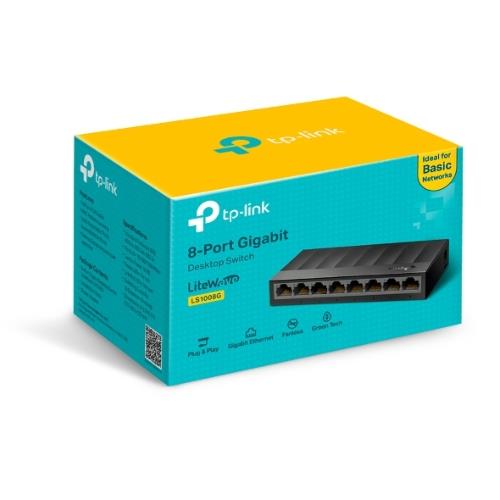

8-Port Gigabit Desktop Switch LS1008G
Power Adapter
Installation Guide
