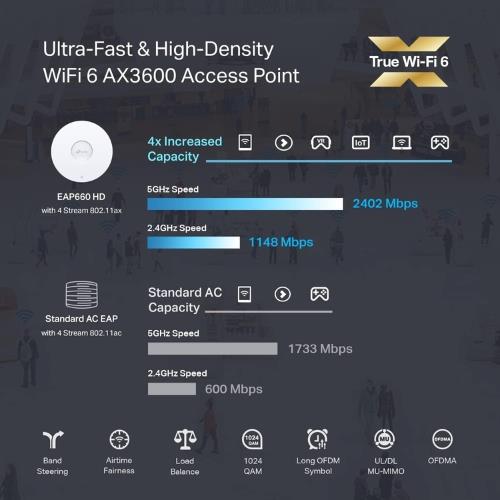

Ultra-Fast Wi-Fi 6 AX3600 Speeds: Delivers simultaneous Wi-Fi 6 speeds of 1148 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band, totaling 3550 Mbps Wi-Fi speeds. This ensures exceptional performance for demanding applications.
High-Density Connectivity: Engineered for environments with a large number of connected devices, offering up to 4$\times$ increased capacity to connect over 1,000 clients simultaneously. This makes it ideal for high-density scenarios like offices, lecture halls, and public venues.
2.5G Ethernet Port: Equipped with a 2.5 Gigabit Ethernet port, boosting total internet throughput and eliminating Wi-Fi bottlenecks, ensuring optimal performance for multi-gigabit backhaul.
High-Efficiency Wi-Fi 6 (OFDMA & MU-MIMO): Leverages advanced Wi-Fi 6 technologies including OFDMA (Orthogonal Frequency Division Multiple Access), 1024-QAM, and Uplink & Downlink MU-MIMO to increase network capacity and efficiency, allowing for more data to be transmitted to multiple devices concurrently.
Integrated into Omada SDN: Seamlessly integrates into TP-Link's Omada Software Defined Networking (SDN) platform, providing 100% centralized cloud management of access points, switches, and routers from a single interface. Features include Zero-Touch Provisioning, intelligent monitoring, and powerful network analytics.
Omada Mesh Technology: Supports Omada Mesh for flexible and convenient wireless deployment, allowing EAPs to wirelessly connect to each other to extend Wi-Fi coverage further and simplify network expansion in challenging cabling scenarios.
Seamless Roaming (802.11k/v/r): Ensures uninterrupted streaming and voice calls by automatically switching clients to the access point with the optimal signal as they move between coverage areas, providing a smooth and continuous user experience.
PoE+ Powered: Supports IEEE 802.3at PoE+ (Power over Ethernet Plus), enabling power and data transmission over a single Ethernet cable for simplified installation and reduced cabling costs. A DC adapter is also included for flexible power options.
Cloud Access & Omada App Control: Offers ultimate convenience with cloud access via the Omada Hardware Controller (OC200/OC300), Omada Software Controller, or the Omada Cloud-Based Controller, along with intuitive management via the Omada App from anywhere.
Secure Guest Network: Provides a robust guest network with multiple authentication options, including Captive Portal (SMS/Facebook Wi-Fi/Voucher), ensuring secure and customizable internet access for visitors.
Advanced Wireless Optimizations: Includes intelligent features like Band Steering (pushes dual-band devices to 5 GHz for faster connections), Load Balance (ensures smooth network experience for many users), and Airtime Fairness (increases average network throughput in congested environments).
Multiple SSIDs: Supports up to 16 SSIDs (8 per band), allowing for the creation of separate wireless networks for different departments or user groups, enhancing network security and organization.
Sleek Design: Features a refined industrial design (typically 9.6 times 9.6 times 2.5 in / 243 times 243 times 64 mm) for discreet ceiling or wall mounting.
Interface: 1 times 2.5 Gbps Ethernet Port (supports IEEE 802.3at PoE)
Button: Reset
Power Supply:
Max. Power Consumption:
Dimensions (W times D times H): 9.6 times 9.6 times 2.5 in (243 times 243 times 64 mm)
Antenna Type: Internal Omni Antennas
2.4 GHz: 4$\times$ 4 dBi
5 GHz: 4$\times$ 5 dBi
Mounting: Ceiling / Wall Mounting (Kits included)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 1148 Mbps
Wireless Functions: 1024-QAM, 4$\times$ Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client.
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.
Transmission Power:
CE: $\<20$ dbm="" _28_2.4="" _ghz2c_="" _eirp29_2c_="" /><23$ dbm="" _28_5="" _ghz2c_="" />
FCC: $\<26$ dbm="" _28_2.4="" _ghz29_2c_="" /><26$ dbm="" _28_5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller, Omada App, Cloud Access (via controller), Zero-Touch Provisioning.
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux.
Certifications: CE, FCC, RoHS.
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

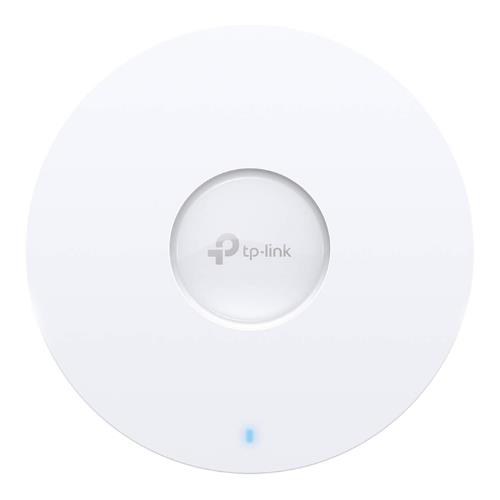

AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point EAP660 HD
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
