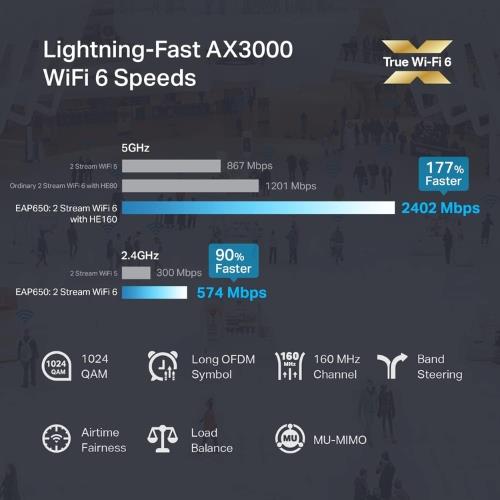

Ultra-Fast Wi-Fi 6 AX3000 Speeds: Delivers lightning-fast AX3000 Wi-Fi 6, with 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, providing a total of 2976 Mbps for demanding applications and numerous connected devices.
High-Efficiency Wi-Fi 6 (OFDMA & 160 MHz Channel): Features advanced Wi-Fi 6 technologies including OFDMA and 1024-QAM, allowing more devices to connect simultaneously with increased throughput and reduced latency. Supports 160 MHz channel bandwidth for double data at peak transmission times on a single stream.
Ultra-Slim Design: Boasts a sleek and elegant ultra-slim form factor (Phi160 mm times 33.6 mm), ensuring discreet and aesthetic ceiling or wall mounting that seamlessly integrates into any modern indoor environment.
PoE+ Powered with DC Adapter Included: Supports standard IEEE 802.3at Power over Ethernet Plus (PoE+) for simplified installation with power and data over a single cable. A 12V DC power adapter is also included, offering flexible power options for varied deployment scenarios.

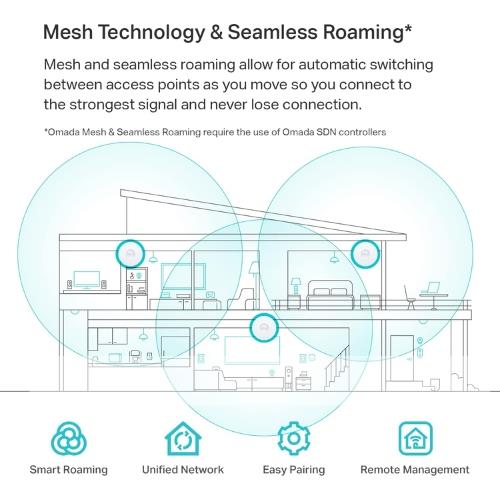

Omada True Wi-Fi 6 Mesh Technology: Integrates with Omada Mesh technology, enabling wireless connectivity between multiple EAPs for extended range and flexible deployment in areas where running Ethernet cables is challenging.
Seamless Roaming (802.11k/v/r): Ensures uninterrupted connectivity as users move between access points. Video streams and voice calls remain unaffected, providing a smooth experience across large areas.
MU-MIMO Technology: Utilizes Multi-User Multiple-Input, Multiple-Output technology to enable the EAP to communicate with multiple clients simultaneously, significantly boosting multi-user throughput and overall network capacity.
Advanced WPA3 Security: Supports WPA3-Personal/Enterprise encryption, offering enhanced security for public networks and robust data protection for enterprise environments.
Multi-Control Options (SDN Integrated): Fully integrates into TP-Link's Omada Software Defined Networking (SDN) platform, providing 100% centralized cloud management. Control options include Omada Hardware Controller (OC200/OC300), Omada Software Controller, and Omada Cloud-Based Controller.
Remote & App Control: Allows for convenient network management via the Omada App (iOS and Android) or a web-based UI, enabling remote configuration, real-time monitoring, and troubleshooting from anywhere.
Secure Guest Network: Provides a highly customizable guest network with various authentication options, including Captive Portal (SMS/Facebook Wi-Fi/Voucher), for secure access and marketing opportunities.
Intelligent Optimization Features: Includes features like Band Steering (directs dual-band devices to the faster 5 GHz band), Load Balance (distributes clients to optimize performance), and Airtime Fairness (ensures equitable airtime to all clients) to maximize network efficiency and user experience.
Multiple SSIDs: Supports up to 16 SSIDs (8 per band), allowing for logical segmentation of the network to cater to different user groups or applications, enhancing network security and organization.
Interface: 1 times Gigabit Ethernet (RJ-45) Port (supports IEEE 802.3at PoE)
Button: Reset
Power Supply:
802.3at PoE+
12 V / 1.0 A DC (EU) / 1.5 A DC (US) (Power Adapter included)
Max. Power Consumption:
Dimensions (W times D times H): 6.3 times 6.3 times 1.3 in (160 times 160 times 33.6 mm)
Antenna Type: Internal Omni Antennas
2.4 GHz: 2 times 4 dBi
5 GHz: 2 times 5 dBi
Mounting: Ceiling / Wall Mounting (Kits included), Junction Box Mounting
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions: 1024-QAM, 4$\times$ Longer OFDM Symbol, OFDMA, HE160 (160 MHz Bandwidth), Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client.
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.
Transmission Power:
CE: $\< /> dBm (2.4 GHz, EIRP), $\< /> dBm (5 GHz, Band1 & Band2, EIRP), $\<30$ dbm="" _28_5="" _ghz2c_="" _band32c_="" />
FCC: $\<25$ dbm="" _28_2.4="" _ghz29_2c_="" /><25$ dbm="" _28_5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller, Omada App, Cloud Access (via controller), Zero-Touch Provisioning.
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux.
Certifications: CE, FCC, RoHS.
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

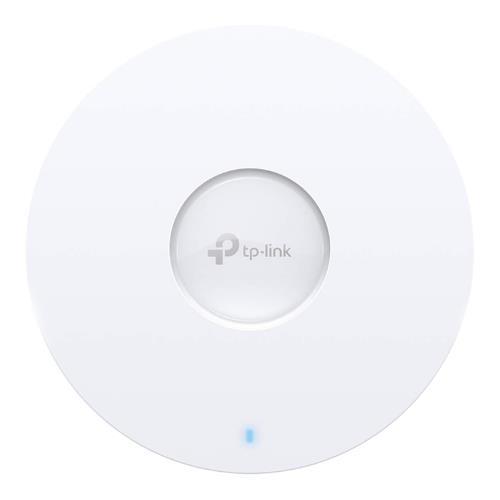

AX3000 Wireless Dual Band Ceiling Mount Access Point EAP650
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
