Omada True Wi-Fi 6 AX1800 Speeds: Delivers simultaneous Wi-Fi 6 speeds of 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band, totaling 1775 Mbps for ultra-fast and efficient connectivity.
High-Density Connectivity: Engineered for environments with a large number of connected devices, offering significantly increased capacity (up to 4 times that of Wi-Fi 5) to connect more clients simultaneously with enhanced performance.
High-Efficiency Wi-Fi 6 (OFDMA & 1024-QAM): Utilizes cutting-edge Wi-Fi 6 technologies including OFDMA (Orthogonal Frequency Division Multiple Access) and 1024-QAM, which allow for more data to be transmitted to multiple devices concurrently, reducing latency and improving overall network efficiency.
Integrated into Omada SDN: Seamlessly integrates into TP-Link's Omada Software Defined Networking (SDN) platform, providing 100% centralized cloud management of access points, switches, and routers from a single interface. Features include Zero-Touch Provisioning, intelligent monitoring, and powerful network analytics.

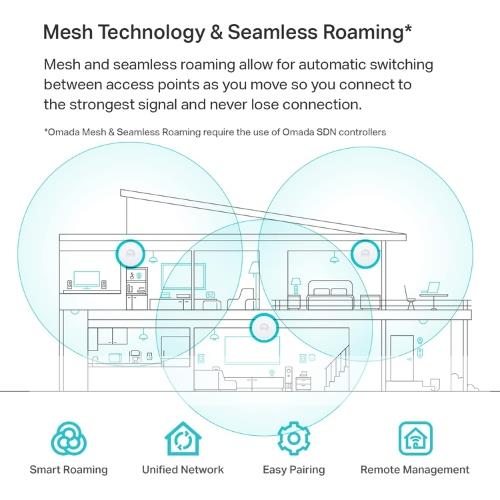

Omada Mesh Technology: Supports Omada Mesh for flexible and convenient wireless deployment, allowing EAPs to wirelessly connect to each other to extend Wi-Fi coverage further and simplify network expansion in challenging cabling scenarios.
Seamless Roaming (802.11k/v/r): Ensures uninterrupted streaming and voice calls by automatically switching clients to the access point with the optimal signal as they move between coverage areas, providing a smooth and continuous user experience.
MU-MIMO Technology: Leverages Multi-User Multiple-Input, Multiple-Output technology to simultaneously transmit data to multiple compatible devices, greatly increasing multi-user throughput and network capacity in high-density environments.
PoE+ Powered: Supports IEEE 802.3at PoE+ (Power over Ethernet Plus), enabling power and data transmission over a single Ethernet cable for simplified installation and reduced cabling costs. A DC adapter is also included for flexible power options.
Cloud Access & Omada App Control: Offers ultimate convenience with cloud access via the Omada Hardware Controller (OC200/OC300), Omada Software Controller, or the Omada Cloud-Based Controller, along with intuitive management via the Omada App from anywhere.
Secure Guest Network: Provides a robust guest network with multiple authentication options, including Captive Portal (SMS/Facebook Wi-Fi/Voucher), ensuring secure and customizable internet access for visitors.
Ultra-Slim Design: Features an elegant, ultra-slim form factor (typically Phi160 mm times 33.6 mm), designed to blend discreetly into various indoor environments when ceiling or wall mounted.
Advanced Wireless Optimizations: Includes intelligent features like Band Steering (pushes dual-band devices to 5 GHz for faster connections), Load Balance (ensures smooth network experience for many users), and Airtime Fairness (increases average network throughput in congested environments).
Multiple SSIDs: Supports up to 16 SSIDs (8 per band), allowing for the creation of separate wireless networks for different departments or user groups, enhancing network security and organization.
Interface: 1 times Gigabit Ethernet (RJ-45) Port (supports IEEE 802.3at PoE and Passive PoE)
Button: Reset
Power Supply:
802.3at PoE+
48 V Passive PoE
12 V / 1.5 A DC (Power Adapter included)
Max. Power Consumption:
EU: 14.4 W (For PoE); 13.1 W (for DC)
US: 14.9 W (For PoE); 13.4 W (for DC)
Dimensions (W times D times H): 6.3 times 6.3 times 1.3 in (160 times 160 times 33.6 mm)
Antenna Type: Internal Omni Antennas
2.4 GHz: 2 times 4 dBi
5 GHz: 2 times 5 dBi
Mounting: Ceiling / Wall Mounting (Kits included), Junction Box Mounting
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions: 1024-QAM, 4$\times$ Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client.
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.
Transmission Power:
CE: $\< /> dBm (2.4 GHz, EIRP), $\< /> dBm (5 GHz band1/2, EIRP), $\<25$ dbm="" _28_5="" ghz="" />
FCC: $\<25$ dbm="" _28_2.4="" _ghz29_2c_="" /><25$ dbm="" _28_5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller, Omada App, Cloud Access (via controller), Zero-Touch Provisioning.
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux.
Certifications: CE, FCC, RoHS.
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

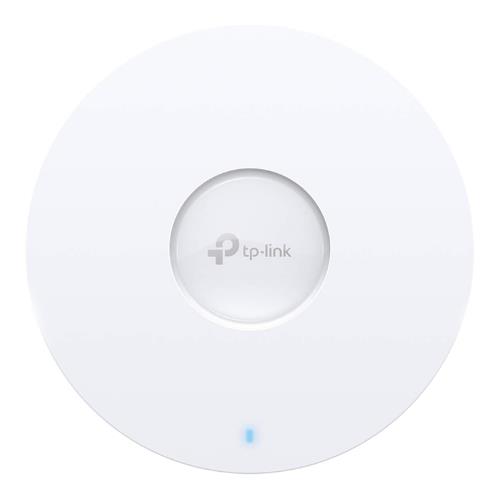

AX1800 Wireless Dual Band Ceiling Mount Access Point EAP620 HD
Power Adapter (DC Adapter)
Ceiling/Wall Mounting Kits
Installation Guide
