Omada True Wi-Fi 6 AX1800 Gigabit Performance: Delivers superior AX1800 speeds, with up to 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, providing ultra-fast and efficient wireless connectivity.
Dual-Band Operation: Supports simultaneous operation on both 2.4 GHz and 5 GHz bands, allowing for greater flexibility and ensuring optimal performance for various device types and applications.
High-Efficiency Wi-Fi 6: Incorporates advanced Wi-Fi 6 technologies such as OFDMA and 1024-QAM, significantly increasing network capacity and efficiency to handle more connected devices with less latency.

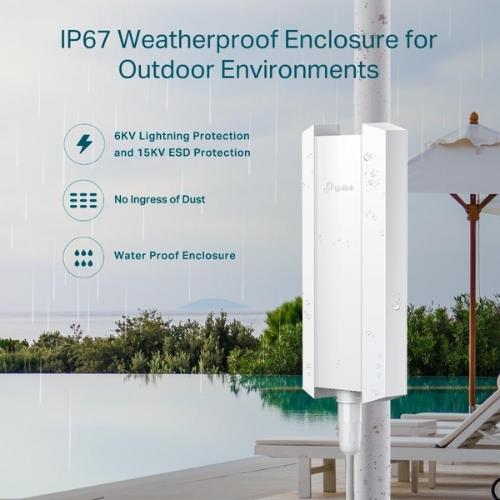

IP67 Weatherproof Enclosure: Features a robust, industrial-grade IP67-rated enclosure, providing complete protection against dust ingress and water immersion, ensuring reliable operation in harsh outdoor environments.
Lightning Protection & ESD Protection: Built-in 6KV Lightning Protection and 15KV ESD Protection safeguard the device and network infrastructure from electrical surges and lightning strikes, enhancing durability.
Long-Range Coverage: Equipped with dedicated high-power amplifiers and professional antennas, designed to provide strong and expansive wireless coverage over extended outdoor areas.

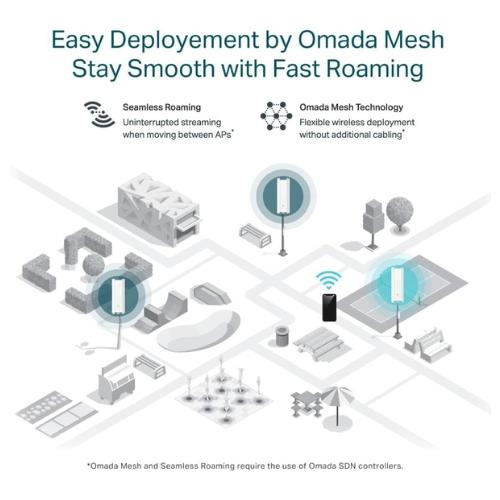

Omada Mesh Technology: Enables wireless connectivity between multiple access points, allowing for extended Wi-Fi coverage and flexible deployment in areas where wired connections are difficult.
Seamless Roaming (802.11k/v/r): Ensures clients automatically switch to the access point with the strongest signal as they move across a property, maintaining uninterrupted streaming and voice calls.
MU-MIMO Technology: Utilizes Multi-User Multiple-Input, Multiple-Output technology to simultaneously communicate with multiple devices, greatly improving multi-user efficiency and overall throughput in high-density scenarios.
PoE+ Powered (802.3at): Supports IEEE 802.3at PoE+ and Passive PoE for flexible power options, allowing both power and data to be transmitted over a single Ethernet cable, simplifying outdoor installation. (Passive PoE adapter included).
Multiple SDN Controller Support: Integrates seamlessly into the Omada Software Defined Networking (SDN) platform, enabling 100% centralized cloud management via Omada Hardware Controllers (OC200/OC300), Software Controller, or the Cloud-Based Controller.
Remote & App Control: Provides convenient remote management and monitoring capabilities through the Omada App (iOS and Android) and web-based UI, allowing for flexible network control from anywhere.
RE Mode Support: Can operate in Range Extender (RE) mode for expanding existing Wi-Fi coverage.
Secure Guest Network: Offers robust guest network functionality with various authentication options, including Captive Portal (SMS, Facebook Wi-Fi, Voucher), for secure and customizable visitor access.
Advanced Wireless Functions: Includes features like Band Steering (pushes dual-band devices to 5 GHz), Load Balance (distributes clients among access points), Airtime Fairness (ensures fair airtime for all clients), and Beamforming (focuses signal towards clients) for optimized performance.
Multiple SSIDs: Supports up to 16 SSIDs (8 per band) for logical segmentation of the network, enhancing security and management for different user groups.
Interface: 1 times Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE and Passive PoE)
Button: Reset
Power Supply:
802.3at PoE+
48V/0.5A Passive PoE (PoE Adapter Included)
Max. Power Consumption:
EU: 12.5 W (802.3at PoE or Passive PoE)
US: 14.7 W (802.3at PoE or Passive PoE)
Dimensions (W times D times H): 11.0 times 4.2 times 2.2 in (280.4 times 106.5 times 56.8 mm) (without antenna & mounting kit)
Antenna Type: 2 times External Detachable Omni-directional Antennas
2.4 GHz: 2 times 4 dBi
5 GHz: 2 times 5 dBi
Weatherproof Enclosure: IP67
Mounting: Pole / Wall Mounting (Kits included)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 1201 Mbps (802.11ax)
2.4 GHz: Up to 574 Mbps (802.11ax)
Wireless Functions: 1024-QAM, 4$\times$ Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjustable on dBm), QoS (WMM), MU-MIMO, Omada Mesh, Seamless Roaming, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client.
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.
Transmission Power:
CE: $\<20$ dbm="" _28_2.4="" _ghz2c_="" _eirp29_2c_="" /><30$ dbm="" _28_5="" _ghz2c_="" />
FCC: $\<25$ dbm="" _28_2.4="" _ghz29_2c_="" /><25$ dbm="" _28_5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller, Omada App, Cloud Access (via controller), Zero-Touch Provisioning.
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux.
Certifications: CE, FCC, RoHS.
Environment:
Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

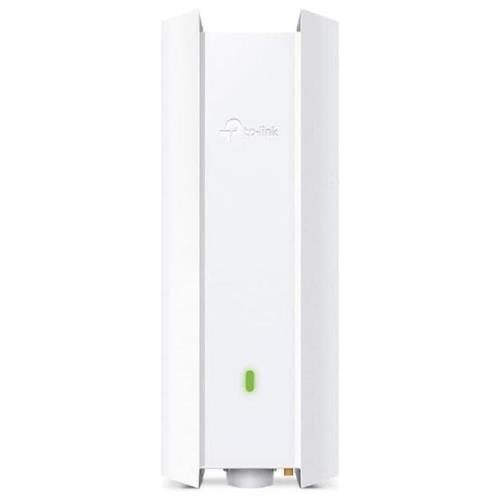

AX1800 Indoor/Outdoor WiFi 6 Access Point EAP610-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Kits
Waterproof Antenna
Installation Guide
