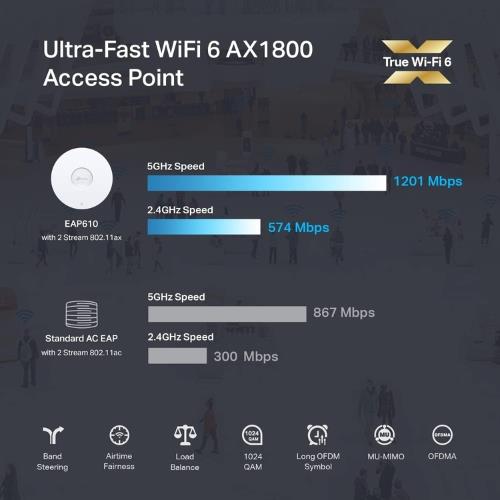

Omada True Wi-Fi 6 AX1800 Speed for Rawalpindi Businesses: Delivers ultra-fast AX1800 Wi-Fi 6 speeds, with 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, providing significantly improved capacity and efficiency for demanding business applications and numerous connected devices
High-Efficiency Wi-Fi 6 (OFDMA & 1024-QAM) for Rawalpindi: Incorporates Wi-Fi 6 technologies like OFDMA (Orthogonal Frequency Division Multiple Access) and 1024-QAM, allowing more devices to connect simultaneously with less lag and higher throughput, optimizing network performance in high-density environments

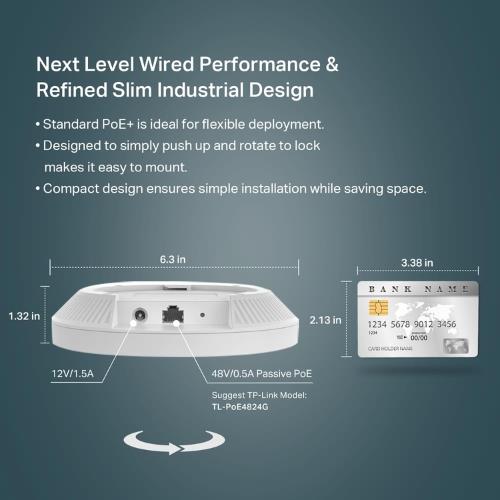

Ultra-Slim Design for Discreet Installation in Rawalpindi: Features a sleek and elegant ultra-slim design (typically Phi160 mm times 33.6 mm), enabling discreet and aesthetic ceiling or wall mounting that seamlessly blends into any modern office, hotel, classroom, or café interior
PoE+ Powered (802.3at) & DC Adapter Included for Flexible Installation in Rawalpindi: Supports both standard 802.3at Power over Ethernet (PoE+) for simplified wiring (power and data over a single cable) and includes a DC power adapter (12V / 1A), offering versatile powering options for flexible deployment in various locations
Integrated into Omada SDN for Centralized Cloud Management : Fully integrates into TP-Link's Omada Software Defined Networking (SDN) platform, providing 100% centralized cloud management for the entire network, including access points, switches, and routers, all controllable from a single interface via web UI or the Omada app in Rawalpindi.
Omada Mesh Technology for Extended Coverage in Rawalpindi: Supports Omada Mesh, enabling wireless connectivity between multiple EAPs for extended range and flexible deployment, simplifying Wi-Fi expansion in areas where running Ethernet cables is challenging or impractical

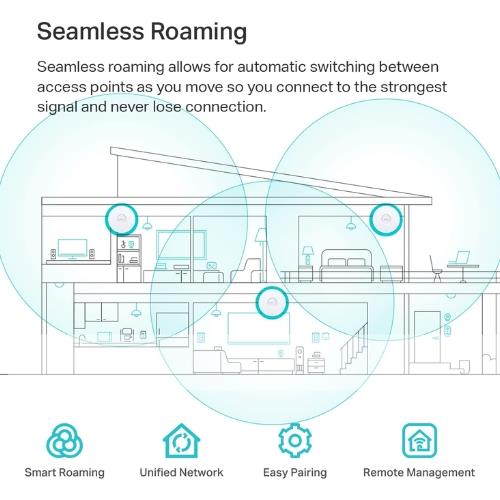

Seamless Roaming (802.11k/v/r) for Uninterrupted Connectivity in Rawalpindi: Ensures that even video streams and voice calls remain unaffected as users move between access points, providing a smooth and uninterrupted wireless experience across large premises in Rawalpindi
MU-MIMO Technology for Multi-Device Performance in Rawalpindi: Leverages MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology to simultaneously communicate with multiple clients, significantly boosting multi-user throughput and overall network capacity in high-density areas of Rawalpindi.
Advanced WPA3 Security for Enhanced Network Protection in Rawalpindi: Supports WPA3-Personal/Enterprise encryption, offering enhanced security for open public networks and stronger data protection for your business network in Rawalpindi.
Secure Guest Network with Multiple Authentication Options for Rawalpindi Businesses: Provides robust guest network capabilities with various authentication options, including Captive Portal (SMS/Facebook Wi-Fi/Voucher), ensuring secure and customizable internet access for visitors in business environments in Rawalpindi.
Remote & App Control for Convenient Management in Rawalpindi: Allows convenient management via the Omada App or a web browser, enabling remote configuration, real-time monitoring, and troubleshooting of your network from anywhere in Rawalpindi.
Optimized Wi-Fi Performance Features for Rawalpindi: Includes intelligent features like Band Steering (directs dual-band devices to the faster 5 GHz band), Load Balance (distributes clients to optimize performance across APs), and Airtime Fairness (ensures equitable airtime to all clients) to enhance overall network efficiency in Rawalpindi.
Multiple SSIDs for Network Segmentation in Rawalpindi: Supports up to 16 SSIDs (8 per band), allowing for the creation of distinct wireless networks for different user groups (e.g., employees, guests, IoT devices), enhancing security and streamlining network management within your Rawalpindi business.
Interface: 1 times Gigabit Ethernet (RJ-45) Port (supports IEEE 802.3at PoE)
Button: Reset
Power Supply:
802.3at PoE+
12 V / 1 A DC (Power Adapter included)
Max. Power Consumption:
EU: 12.8 W (For PoE); 10.8 W (for DC)
US: 13.9W (For PoE); 11.8 W (for DC)
Dimensions (W times D times H): 6.3 times 6.3 times 1.3 in (160 times 160 times 33.6 mm) - Note: Some versions may have slightly different dimensions (e.g., 9.6 times 9.6 times 2.5 in).
Antenna Type: Internal Omni Antennas
2.4 GHz: 2 times 4 dBi
5 GHz: 2 times 5 dBi
Mounting: Ceiling / Wall Mounting (Kits included), also supports Junction Box Mounting
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions: 1024-QAM, 4$\times$ Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming (S), Omada Mesh(S), Band Steering, Load Balance, Airtime Fairness, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication(S), Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
CE: $\<20$ dbm="" _28_2.4="" _ghz2c_="" _eirp29_2c_="" /><23$ dbm="" _28_5="" _ghz2c_="" />
FCC: $\<25$ dbm="" _28_2.4="" _ghz29_2c_="" /><25$ dbm="" _28_5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada Cloud-Based Controller (S), Omada App, Cloud Access (via controller), Zero-Touch Provisioning(S)
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

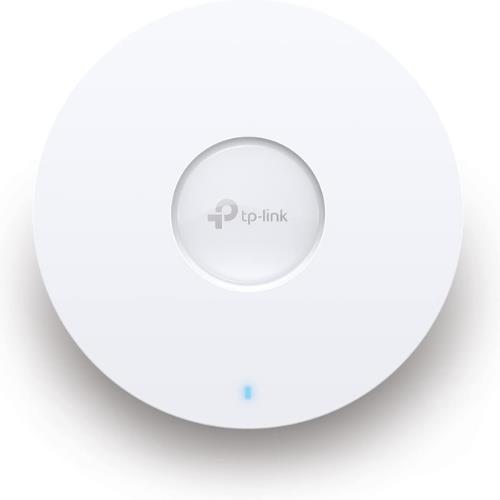

AX1800 Wireless Dual Band Ceiling Mount Access Point EAP610
Power Adapter (DC Adapter)
Ceiling/Wall Mounting Kit
Installation Guide
