AC1350 Dual-Band Wi-Fi for Islamabad: Delivers combined Wi-Fi speeds of up to 1350 Mbps (867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz), ensuring fast and reliable connectivity for demanding applications and numerous users in Islamabad.
Gigabit Ethernet Port for High Throughput in Islamabad: Equipped with a Gigabit Ethernet port, ensuring that the wired backhaul can support the high wireless speeds without bottlenecks, crucial for high-performance networks in Islamabad.
Integrated into Omada SDN for Centralized Management in Islamabad: Seamlessly integrates with TP-Link's Omada Software Defined Networking (SDN) platform, providing 100% centralized cloud management for the entire network, including access points, switches, and routers, all controlled from a single interface in Islamabad.

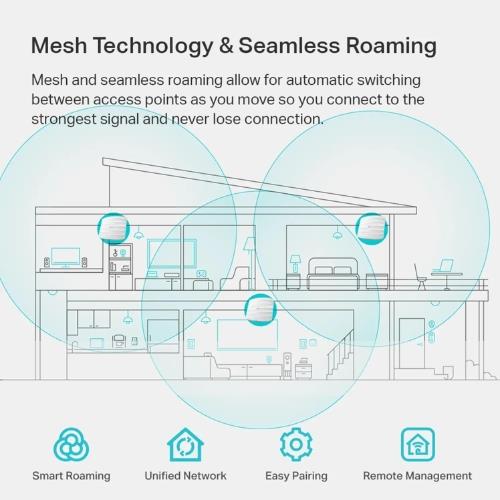

Omada Mesh Technology for Flexible Deployment in Islamabad: Supports Omada Mesh, allowing EAPs to wirelessly connect to each other to extend Wi-Fi coverage further and more flexibly, simplifying deployment in areas where wired connections are difficult or costly in Islamabad.
Seamless Roaming (802.11k/v) for Uninterrupted Connectivity in Islamabad: Ensures smooth transitions for clients as they move between access points, maintaining uninterrupted video streams and voice calls, ideal for large buildings or multi-floor setups in Islamabad.
MU-MIMO Technology for Higher Capacity in Islamabad: Utilizes MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology to communicate with multiple devices simultaneously, significantly increasing network efficiency and throughput in high-density environments in Islamabad.
PoE Powered (802.3af/at & Passive PoE) for Easy Installation in Islamabad: Supports both standard 802.3af/at PoE and Passive PoE (PoE adapter included for Passive PoE), offering flexible power options and simplified installation by eliminating the need for separate power outlets, streamlining deployments in Islamabad.
Cloud Access & Omada App for Remote Management in Islamabad: Provides convenient cloud access via the Omada Hardware/Software Controller or the intuitive Omada App, allowing administrators to manage and monitor their network remotely from anywhere, ensuring flexibility for businesses in Islamabad.
Secure Guest Network with Captive Portal for Islamabad Businesses: Features robust guest network capabilities with multiple authentication options, including Captive Portal (SMS, Facebook Wi-Fi, Voucher), providing secure and customizable guest access for hotels, cafes, and other businesses in Islamabad.
Advanced Wireless Technologies for Optimized Performance in Islamabad: Includes features like Band Steering (automatically moving dual-band devices to the faster 5GHz band), Airtime Fairness (ensuring equitable airtime to all clients), and Beamforming (focusing Wi-Fi signal towards clients) for optimized network performance in Islamabad.
Multiple SSIDs for Network Segmentation in Islamabad: Supports up to 16 SSIDs (8 per band), allowing for the creation of separate wireless networks for different user groups (e.g., employees, guests, IoT devices), enhancing security and network management in Islamabad.
Interface: 1 × Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE and Passive PoE)
Button: Reset
Power Supply:
802.3af/at PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: 10.5 W (EU), 12.6 W (US)
Dimensions (W x D x H): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type: Internal Omni Antenna
2.4 GHz: 2 × 4 dBi
5 GHz: 2 × 5 dBi
Mounting: Ceiling / Wall Mounting (Kits included)
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 450 Mbps
Wireless Functions: Multiple SSIDs (Up to 16, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjustable on dBm), QoS (WMM), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, MU-MIMO, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power:
CE: <20dbm _28_2.4="" _ghz2c_="" _eirp29_2c_="" /><23dbm _28_5="" _ghz2c_="" />
FCC: <27dbm _28_2.4="" ghz="" _26_="" 5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada App, Cloud Access (via controller)
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

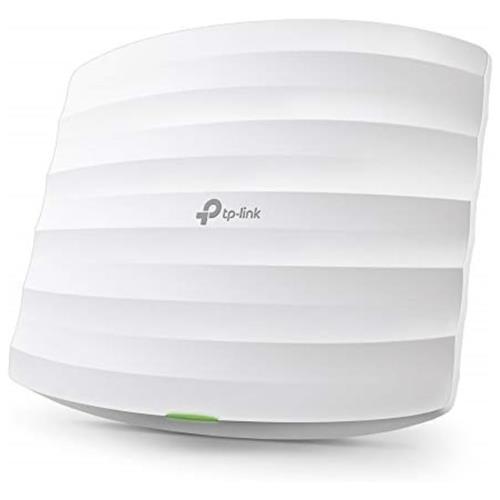

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
