TP-Link EAP115 N300 Wireless Ceiling Mount Access Point, Support PoE 802.3af/at and Direct Current, Easily Mount to Wall or Ceiling, Simply Managed by Free EAP Controller Software

TP-Link EAP115 N300 Wireless Ceiling Mount Access Point

Key Features:

• 300Mbps Wireless N Speed for Islamabad: Provides stable 2.4 GHz Wi-Fi connectivity with speeds up to 300Mbps, suitable for general internet access, online collaboration, and client communication in business settings throughout Islamabad.
• Flexible PoE (802.3af/at) & DC Power Options for Islamabad: Supports standard IEEE 802.3af/at PoE, allowing power and data transmission over a single Ethernet cable for simplified installation, especially in locations in Islamabad where power outlets are scarce. It also includes an option for direct current (DC) power via an adapter.

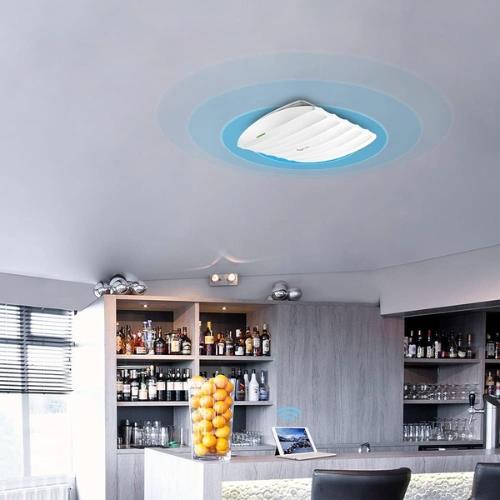

• Ceiling/Wall Mount Design for Discreet Integration in Islamabad: Features a sleek, minimalist design that allows for easy and discreet mounting on walls or ceilings, blending seamlessly into any interior decor for a clean, professional appearance in Islamabad business premises.

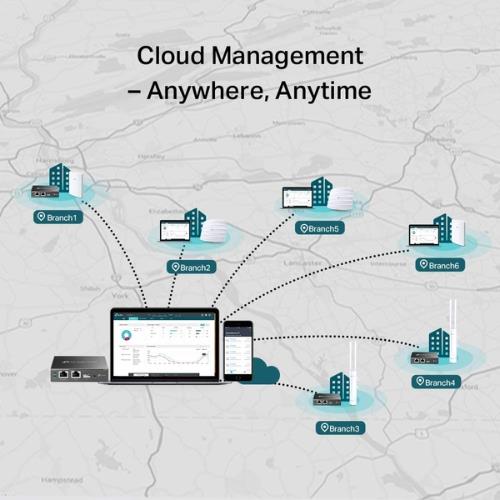

• Centralized Management with Omada SDN for Islamabad Networks: Fully integrated into TP-Link's Omada SDN platform, enabling 100% centralized cloud management via Omada Software Controller, Omada Hardware Controller (OC200/OC300), or the Omada App. This simplifies configuration, real-time monitoring, and maintenance of your entire network from a single interface in Islamabad.
• Secure Guest Network with Captive Portal for Islamabad Businesses: Offers advanced guest network capabilities with multiple authentication options through a customizable Captive Portal (including SMS, Facebook Wi-Fi, and Voucher authentication), ensuring secure and managed guest Wi-Fi access for businesses in Islamabad.
• Multiple SSIDs for Network Segmentation in Islamabad: Supports up to 8 SSIDs, allowing administrators to create distinct wireless networks for different user groups (e.g., employees, guests, IoT devices), enhancing security and streamlining network management within your Islamabad business.
• Enterprise-Class Wi-Fi Security for Islamabad: Incorporates robust wireless security features including WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK, 802.1X, MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, and Rogue AP Detection, safeguarding your network in Islamabad from potential threats.
• Load Balance for Optimized Performance in Islamabad: Optimizes network performance in high-density user environments by distributing client connections evenly across multiple access points, preventing overload and ensuring a smooth Wi-Fi experience for all users in Islamabad.
• Compact Design with Internal Antennas: Its compact form factor (189.5 × 170.5 × 29.7mm) with internal 2x2 4dBi omni-directional antennas provides effective coverage while maintaining a low profile.

Technical Specifications:

• Interface: 1 × Fast Ethernet (RJ-45) Port (Supports IEEE 802.3af/at PoE)
• Button: Reset
• Power Supply: IEEE 802.3af/at PoE or external 9VDC/0.6A power supply (PoE adapter included for standard PoE setup, DC adapter typically also included for direct power option)
• Max. Power Consumption: 2.8 W
• Dimensions (W x D x H): 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7mm)
• Antenna Type: Internal 2 × 4dBi Omni-directional
• Mounting: Ceiling / Wall Mounting (Kits included)
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4–2.4835 GHz
• Signal Rate:
  • 11n: Up to 300Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
• Wireless Functions: Multiple SSIDs (Up to 8), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjustable on 1 dBm step), QoS (WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
• Transmission Power:
  • CE: ≤19dBm(EIRP)
  • FCC: ≤21dBm
• Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada App, Cloud Access (via controller)
• System Requirements: Microsoft Windows 11/10/8.1/8/7/Vista/XP, Mac OS, Linux
• Certifications: CE, FCC, RoHS
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Package Contents (Typical):

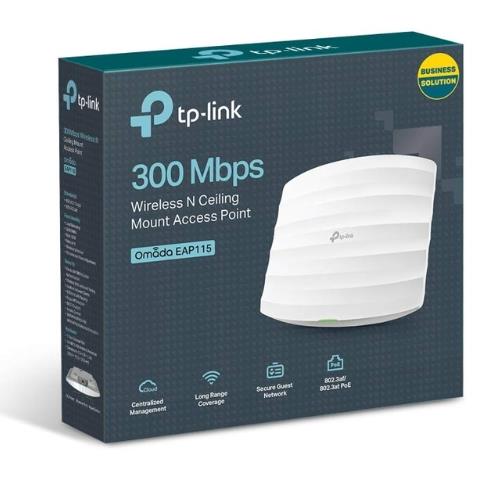

• 300Mbps Wireless N Ceiling Mount Access Point EAP115
• 802.3af/at PoE Power Adapter (or Passive PoE adapter depending on specific bundle)
• DC Power Adapter (if applicable, for direct current option)
• Mounting Kits (for ceiling/wall installation)
• Installation Guide
