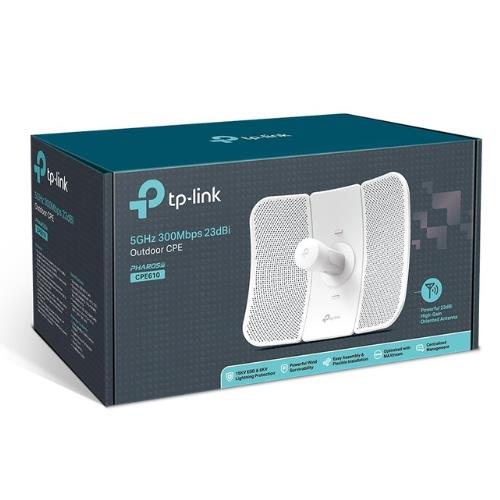

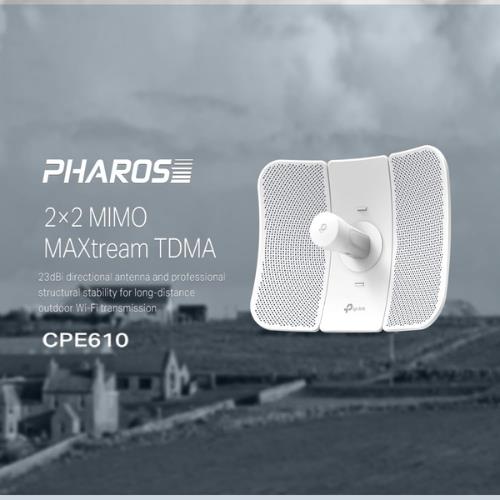

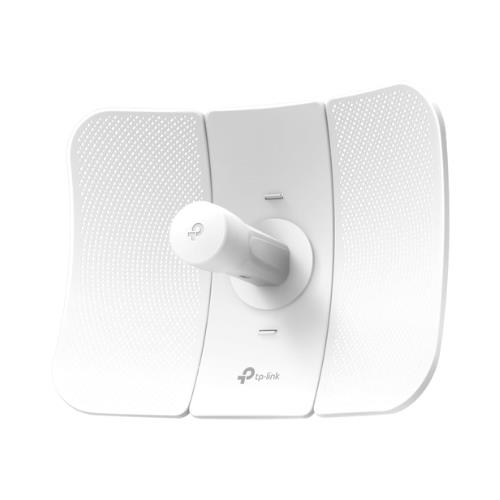

TP-Link CPE610 High Power Outdoor CPE/Access Point, 5GHz 300Mbps, 802.11N/A, Dual-Polarized 23dBi Directional Antenna, Passive POE,White

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
  • Up to 300Mbps on 5GHz wireless data rates
  • 23dBi high-gain directional 2×2 MIMO antenna
  • sturdy structural design keeps CPE610 stable even in strong winds
  • Durable IP65 weatherproof | 15 kV ESD and 6 kV lightning protection
Product Code: CPE610
Brand: Tp-link
Warranty: 1 Year
Availability: In Stock
Rs. 17,900

TP-Link CPE610 High Power Outdoor CPE/Access Point

Key Features:

  • Ultra-High Gain 23dBi Directional Antenna for Islamabad: Features a professional 23dBi 2x2 dual-polarized directional Cassegrain antenna with a dedicated metal reflector. This design ensures highly focused signal transmission, excellent beam directivity, reduced interference, and extended range, perfect for long-distance links in Islamabad.
  • Long-Range Wireless Transmission (30km+) in Islamabad: Capable of establishing reliable wireless connections over distances exceeding 30km in tested field conditions, making it an excellent choice for connecting distant sites or providing internet access to remote areas in Islamabad.
  • 5GHz 300Mbps Wireless N Speed for Islamabad: Operates on the less congested 5GHz band with wireless N speeds up to 300Mbps (802.11a/n). This provides stable and high-throughput data transmission essential for video surveillance, internet backhaul, and other demanding applications in Islamabad.
  • Pharos MAXtream TDMA Technology for Islamabad: Implements TP-Link's proprietary Time-Division-Multiple-Access (TDMA) technology. This significantly improves network throughput, capacity, and latency performance, especially in congested PtMP environments with multiple clients connected to a single base station in Islamabad.
  • Robust IP65 Weatherproof Design for Islamabad Climate: Features a durable, IP65 water and dust-proof outdoor PC stabilized plastic enclosure. This, combined with 15KV ESD Protection and 6KV Lightning Protection, ensures the CPE610 can reliably operate in extreme outdoor conditions, from heavy rain to electrical surges, common in Islamabad.
  • Passive PoE (Power over Ethernet) for Simplified Deployment in Islamabad: Powered conveniently via Passive PoE (24V 0.5A PoE Adapter included), eliminating the need for a separate power cable and allowing flexible installation up to 60 meters (200 feet) from a power source. This simplifies deployment in various outdoor locations across Islamabad.

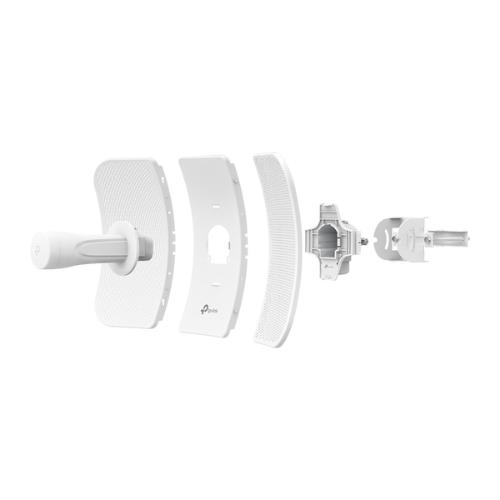

  • Easy Assembly & Flexible Installation in Islamabad: Innovative snap-lock parts allow for fast and simple assembly. Pole mounting kits and three-axis alignment capability facilitate flexible installation to achieve optimal signal direction and stability, even in windy conditions in Islamabad.
  • Centralized Management System (Pharos Control) for Islamabad: Comes with TP-Link's Pharos Control, a free, user-friendly centralized management software. This allows administrators to easily discover, configure, monitor, and maintain all Pharos devices in their network from a single PC in Islamabad.
  • Multiple Operation Modes for Islamabad Applications: Supports various operating modes including AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP), offering versatility to meet diverse network deployment requirements in Islamabad.

Technical Specifications:

  • Processor: Qualcomm 560MHz CPU, MIPS 74Kc
  • Memory: 64MB DDR2 RAM, 8MB Flash
  • Interface:
    • 1 × 10/100Mbps Shielded Ethernet Port (LAN/PoE)
    • 1 × Reset Button
  • Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
    • Voltage range: 16-27VDC (24V 0.5A Passive PoE Adapter included)
  • Max. Power Consumption: 7.41 W
  • Dimensions (W x D x H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) - Assembled unit
  • Antenna Gain: 23dBi
  • Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
  • Protection:
    • 15KV ESD Protection
    • 6KV Lightning Protection
  • Enclosure: Outdoor PC stabilized plastic material, IP65 water and dust proof design
  • Wireless Standards: IEEE 802.11a/n, Proprietary Protocol (TDMA Mode with Pharos MAXtream enabled)
  • Frequency: 5.15~5.85GHz (Note: Available operating frequency may vary by region)
  • Wireless Speeds:
    • Up to 300Mbps (40MHz, Dynamic)
    • Up to 144.4Mbps (20MHz, Dynamic)
    • Up to 72.2Mbps (10MHz, Dynamic)
    • Up to 36.1Mbps (5MHz, Dynamic)
  • Transmission Power: Max. 25dBm (Adjustable power by 1dBm)
  • Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • Management: Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management
  • System Tools: Throughput Monitor, Spectrum Analyzer, Speed Test, Ping, Traceroute, Wireless Signal Quality Indicators
  • System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 10, 11, MAC OS, NetWare, UNIX or Linux. (Recommended Web Browsers: Google Chrome, Safari, Firefox. IE browsers are not recommended.)
  • Environment:
    • Operating Temperature: -40℃~70℃ (-40℉~158℉)
    • Storage Temperature: -40℃~70℃ (-40℉~158℉)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~95% non-condensing

Package Contents (Typical):

  • TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide
