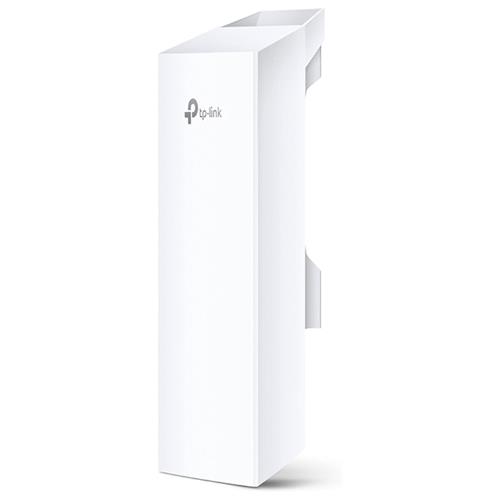

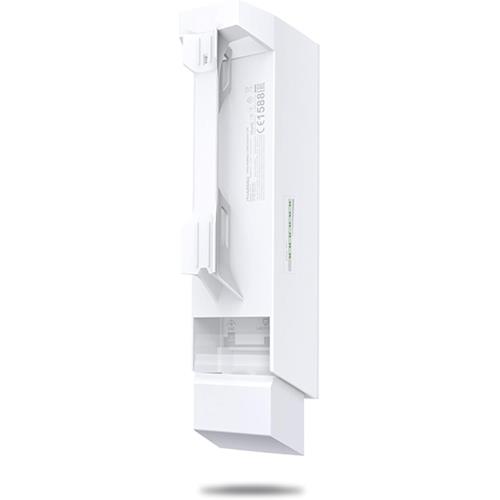

TP-Link CPE510 5GHz N300 Long Range Outdoor CPE
Key Features:
- High-Gain Directional Antenna: Equipped with a built-in 13dBi 2x2 dual-polarized directional MIMO antenna, providing focused signal strength for extended range and improved link stability.
- Long-Range Wireless Transmission: Designed for long-distance wireless data transmission, capable of covering ranges of 15km+ in tested field conditions, making it ideal for bridging networks between buildings or remote sites.
- 5GHz 300Mbps Wireless N Speed: Operates on the less congested 5GHz band with wireless N speeds up to 300Mbps, ensuring stable and high-throughput connections for data, video surveillance, and internet backhaul.
- Pharos MAXtream TDMA Technology: TP-Link's proprietary Time-Division-Multiple-Access (TDMA) technology significantly improves product performance in throughput, capacity, and latency, especially critical for PtMP networks where multiple CPEs connect to a single base station.
- Robust Outdoor Design: Features an IPX5 weatherproof enclosure and includes 15KV ESD Protection and 6KV Lightning Protection, ensuring reliable operation under various outdoor conditions.
- Passive PoE Support: Powered by Passive Power over Ethernet (PoE) via a dedicated PoE adapter (included), allowing for flexible deployment up to 60 meters (200 feet) away from a power outlet, streamlining installation.

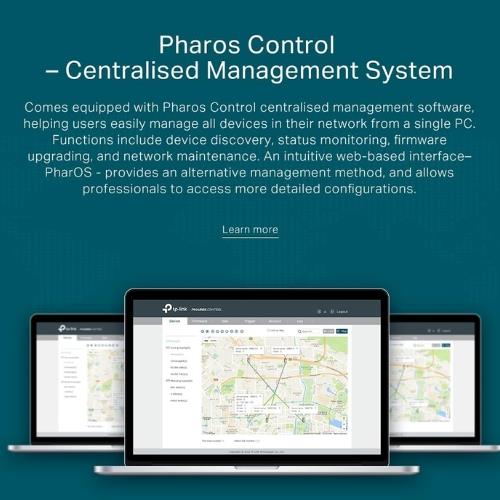

- Centralized Management (Pharos Control): Comes with TP-Link's Pharos Control software, a free centralized management application that allows users to easily manage all Pharos devices in their network from a single PC, simplifying configuration, monitoring, and maintenance.
- Multiple Operation Modes: Supports various operation modes including AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP), offering versatility for diverse network deployment scenarios.
- Adjustable Transmission Power: Allows for adjustable transmission power from 0 to 23dBm (500mW), enabling compliance with local regulations and fine-tuning link performance.
- Dual Ethernet Ports: Features two 10/100Mbps shielded Ethernet ports, with one supporting Passive PoE In and the other supporting Passive PoE Passthrough (for powering another PoE device).
Technical Specifications:
- Processor: Qualcomm Atheros enterprise 560MHz CPU, MIPS 74Kc
- Memory: 64MB DDR2 RAM, 8MB Flash
- Interface:
- 1 × 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE In)
- 1 × 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
- 1 × Grounding Terminal
- 1 × Reset Button
- Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC (24V 0.5A Passive PoE Adapter included)
- Max. Power Consumption: 10.5 Watts (Note: Power drawn will be higher depending on cable length)
- Dimensions (W x D x H): 224 x 79 x 60 mm (8.8 x 3.1 x 2.4 in.)
- Antenna Type: Built-in 13dBi 2x2 Dual-polarized Directional Antenna
- Beam Width: 45° (H-Plane) / 30° (E-Plane)
- Protection:
- 15KV ESD Protection
- 6KV Lightning Protection
- Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification
- Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled), Proprietary Protocol (TDMA Mode with Pharos MAXtream enabled)
- Frequency: 5.15~5.85GHz (Note: Available operating frequency may vary by region)
- Wireless Speeds: Up to 300Mbps (40MHz, Dynamic), Up to 144.4Mbps (20MHz, Dynamic), etc.
- Transmission Power: Adjustable from 0 to 23dBm/200mW (Max. 27dBm/500mW for specific regions)
- Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- Management: Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management
- System Tools: Throughput Monitor, Spectrum Analyzer, Speed Test, Ping, Traceroute, Wireless Signal Quality Indicators
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 10, 11, MAC OS, NetWare, UNIX or Linux. (Recommended Web Browsers: Google Chrome, Safari, Firefox. IE browsers are not recommended.)
- Environment:
- Operating Temperature: -40℃~70℃ (-40℉~158℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
Package Contents:
- TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
