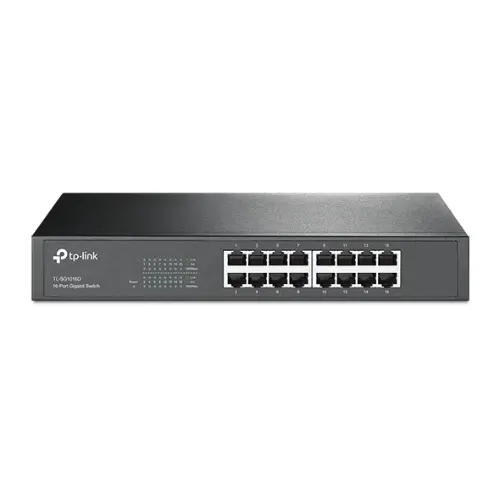

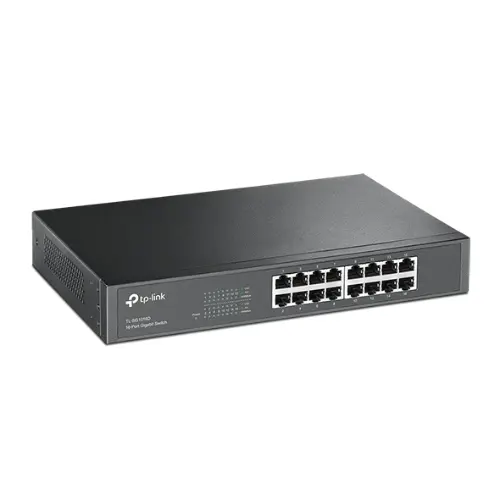

TP Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network.
  • 16 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design
Product Code: SG1016D
Brand: Tp-link
Warranty: 1 year
Availability: In Stock
Rs. 15,500

TP-Link TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch

Key Features:

  • 16 Gigabit Ethernet Ports: Provides sixteen 10/100/1000 Mbps RJ45 ports for high-speed network connectivity. All ports support Auto-Negotiation and Auto MDI/MDIX, simplifying network setup by eliminating the need for crossover cables.

  • High Performance: Features non-blocking switching architecture, enabling full wire-speed forwarding and filtering of packets for maximum throughput. With a 32 Gbps switching capacity and 23.8 Mpps packet forwarding rate, it ensures smooth and instant transfer of large files, making it ideal for bandwidth-intensive applications.

  • Green Ethernet Technology: Incorporates innovative energy-efficient technology that automatically adjusts power consumption based on the link status and cable length. This can significantly reduce power consumption, making it an eco-friendly and cost-effective solution for homes and businesses. It can save up to 40% of power consumption compared to conventional switches.

  • Plug and Play: Offers hassle-free installation with no configuration required. Simply connect your Ethernet cables and the power cord for instant network expansion.

  • Fanless Design: The fanless design ensures silent operation, making it suitable for deployment in noise-sensitive environments such as offices, meeting rooms, or home networks without adding noise.

  • Versatile Design (Desktop/Rackmount): Housed in a durable steel casing with a standard 13-inch size, allowing for flexible placement on a desktop or convenient mounting in a 19-inch rack using the included rackmount kit.

  • Reliable Data Transfer: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer across the network.

  • Jumbo Frame Support: Supports 10KB Jumbo frames, significantly improving the performance of large file transfers across the network.

  • MAC Address Auto-Learning and Auto-Aging: Features MAC address auto-learning and auto-aging functions, ensuring efficient and stable network performance. It maintains an 8K MAC address table.

Technical Specifications:

  • Interface: 16 times 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

  • Network Media:

    • 10BASE-T: UTP category 3, 4, 5 cable (le 100m)

    • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (le 100m)

  • Fan Quantity: Fanless

  • Physical Security Lock: No

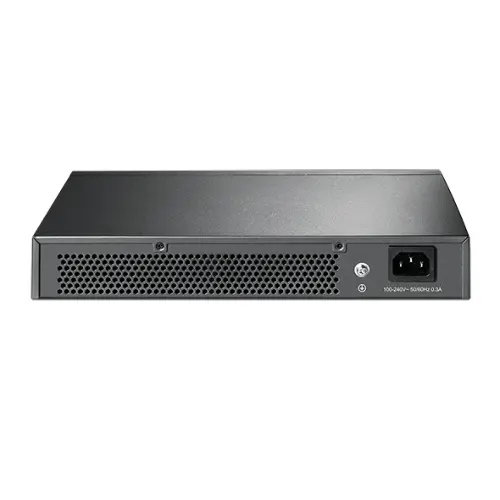

  • Power Supply: 100-240VAC, 50/60Hz (Internal Power Supply)

  • LED Indicators: Power, Link/Act (for each port, indicating 10/100/1000Mbps speed)

  • Dimensions (W 11.6 times 7.1 times 1.7 in (294 times 180 times 44 mm)

  • Max. Power Consumption: 9.95 W (220V/50Hz)

  • Max. Heat Dissipation: 33.93 BTU/h

  • Switching Capacity: 32 Gbps

  • Packet Forwarding Rate: 23.8 Mpps

  • MAC Address Table: 8K

  • Jumbo Frame: 10 KB

  • Transfer Method: Store-and-Forward

  • Advanced Functions: Green Technology, 802.3X Flow Control, Back Pressure (for Half Duplex)

  • Certifications: CE, FCC, RoHS

  • Environment:

    • Operating Temperature: 0℃~40℃ (32℉~104℉)

    • Storage Temperature: -40℃~70℃ (-40℉~158℉)

    • Operating Humidity: 10%~90% non-condensing

    • Storage Humidity: 5%~90% non-condensing

  • Package Contents: 16-Port Gigabit Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet
