16 Fast Ethernet Ports: Provides 16 10/100 Mbps RJ45 ports for expanding your wired network. It's ideal for connecting multiple devices like computers, printers, network storage, and IP cameras in small to medium-sized offices or large homes.
Plug and Play: Offers hassle-free installation with no configuration required. Simply plug in your Ethernet cables and power adapter, and the switch is ready for immediate use.
Auto MDI/MDIX: All ports support Auto MDI/MDIX, eliminating the need for crossover cables. This simplifies network setup and ensures compatibility with various Ethernet cable types.
Non-Blocking Switching Architecture: Features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput (3.2 Gbps switching capacity). This ensures fast and reliable data transfer.
Green Ethernet Technology: Incorporates innovative energy-efficient technology that automatically adjusts power consumption according to the link status and cable length. This can significantly reduce power consumption, making it an eco-friendly solution for your network.
Fanless Design: The fanless design ensures silent operation, making it suitable for deployment in any environment, including quiet offices and residential areas, without adding noise.
Desktop/Rack-Mountable Design: Features a durable plastic case with a versatile design that allows for easy placement on a desktop or convenient rack-mounting (13-inch size for some versions) for more organized installations.
Unmanaged Switch: A simple and straightforward unmanaged switch that requires no complex setup, software, or ongoing management for basic network expansion.
IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.
Store-and-Forward Switching: Utilizes the store-and-forward switching scheme, which checks for errors before forwarding packets, ensuring high data integrity.

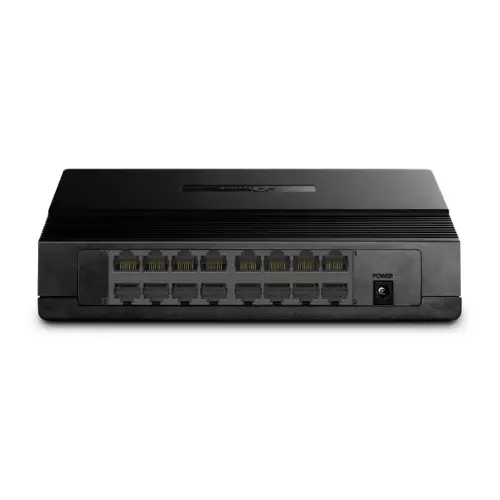

Interface: 16 times 10/100 Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
Fan Quantity: Fanless
External Power Supply: External Power Adapter (Output: 9VDC / 0.6A or 12VDC / 1.0A depending on version)
Dimensions (W times D times H): 7.9 times 5.6 times 1.0 in (200 times 142 times 25 mm) or 13.0 times 7.1 times 1.7 in (330 times 180 times 44 mm) for rack-mountable version.
Max. Power Consumption: 3.2 W (220V/50Hz) or 3.0 W (for some versions)
Max. Heat Dissipation: 10.92 BTU/h or 10.23 BTU/h (for some versions)
Switching Capacity: 3.2 Gbps
Packet Forwarding Rate: 2.38 Mpps
MAC Address Table: 2K or 8K (depending on version)
Jumbo Frame: 2KB or 10KB (depending on version)
Transfer Method: Store and Forward
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

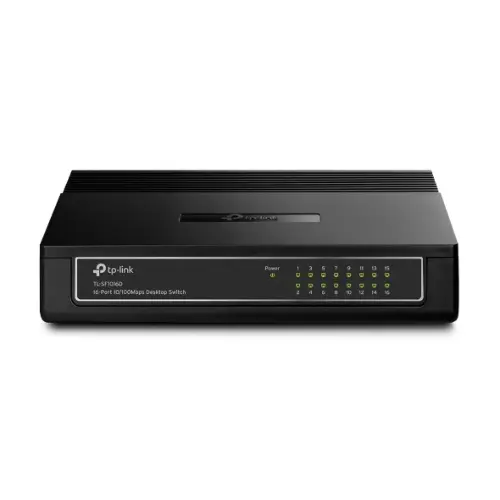

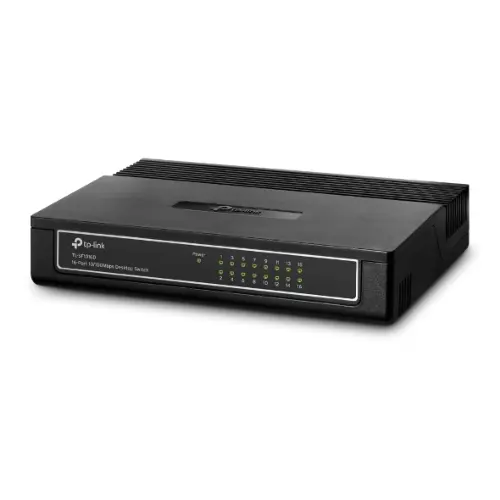

16-Port 10/100 Mbps Desktop Switch TL-SF1016D
Power Adapter
Installation Guide
