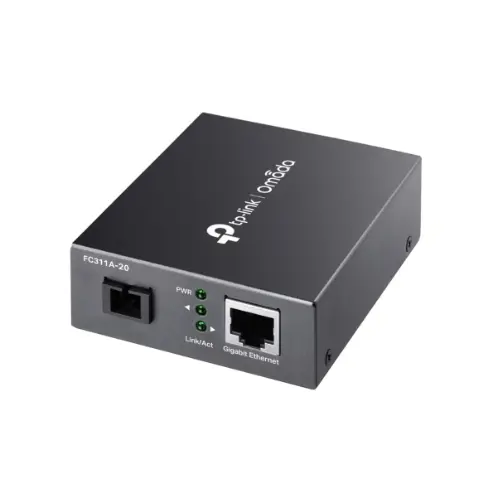

TP Link TL-FC311A-20 Gigabit WDM Media Converter

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
  • 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

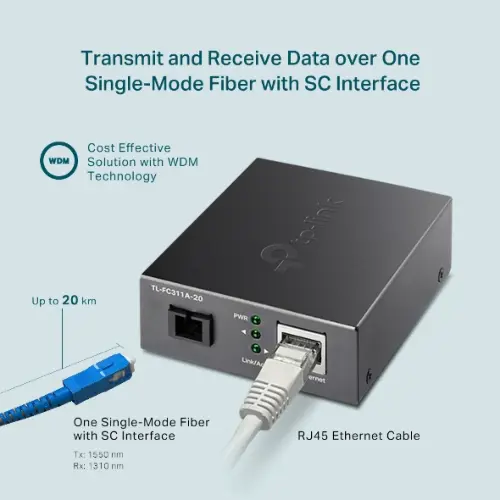

  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20 km
Product Code: FC311A
Brand: Tp-link
Warranty: 1 Year
Availability: In Stock
Rs. 11,500

TP-Link TL-FC311A-20 Gigabit WDM Media Converter

Key Features:

  • Gigabit Ethernet to Fiber Conversion: Converts electrical Ethernet signals from an RJ45 port to optical signals for transmission over fiber optic cable, and vice-versa. This allows for long-distance network extensions where traditional copper cabling is insufficient.

  • WDM Technology (Wavelength Division Multiplexing): Adopts WDM technology to transmit and receive data over a single strand of single-mode fiber. This effectively doubles the capacity of a fiber optic cable, significantly reducing cable deployment costs by requiring only half the fiber infrastructure.

  • Long Distance Transmission: Extends fiber distance up to 20 km (12.4 miles) over 9/125 μm single-mode fiber, making it suitable for extending networks across campuses, between buildings, or for long-range surveillance applications.

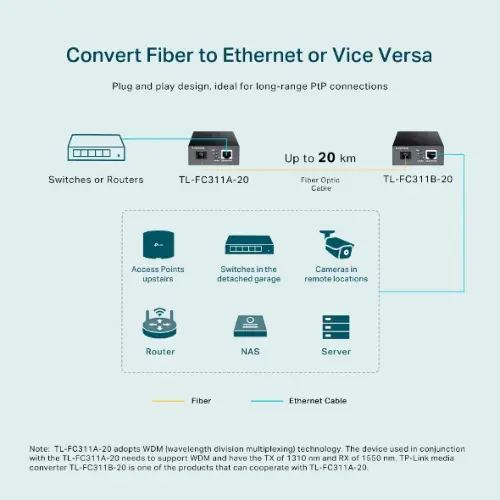

  • Complementary Wavelengths: The TL-FC311A-20 transmits data at a wavelength of 1550 nm (TX) and receives data at 1310 nm (RX). It is designed to work in conjunction with a compatible media converter (such as TP-Link TL-FC311B-20), which transmits at 1310 nm and receives at 1550 nm, to complete the fiber link.

  • Auto-Negotiation (RJ45 Port): The 10/100/1000 Mbps RJ45 port supports Auto-Negotiation for speed and Auto-MDI/MDIX, eliminating the need for crossover cables. It also supports auto-negotiation of Half-Duplex/Full-Duplex transfer mode.

  • Standalone or Rack-Mountable: Can be used as a standalone desktop device or integrated into TP-Link's TL-FC1420 rack for centralized power supply and management in multi-converter deployments.

  • Plug and Play: Offers hassle-free installation with no configuration required. Simply connect your Ethernet cable, fiber optic cable, and power adapter for instant connectivity.

  • LED Indicators: Features PWR and Link/Act LEDs for easy monitoring of power status and network activity.

Technical Specifications:

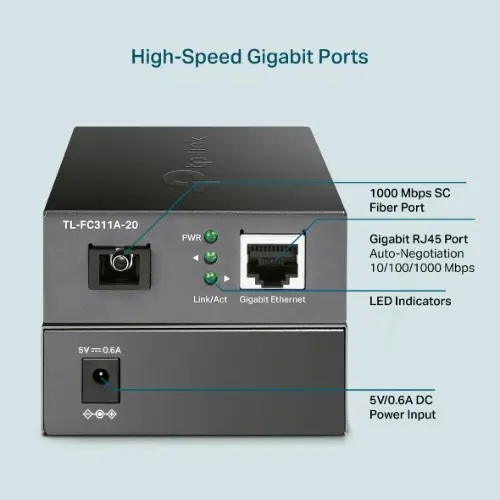

  • Interface:

    • 1 times Gigabit SC Fiber Port

    • 1 times 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

  • Network Media:

    • Fiber: Single-mode Fiber (9/125 μm)

    • Ethernet: UTP category 5, 5e cable (maximum 100m)

  • Wavelength:

    • TX: 1550 nm

    • RX: 1310 nm

  • Transmission Distance: Up to 20 km (12.4 miles)

  • Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

  • LED Indicators: PWR, Link/Act

  • Power Supply: External Power Adapter: 5 V/0.6 A

  • Dimensions (W 3.7 times 2.9 times 1.1 in (94.5 times 73.0 times 27.0 mm)

  • Environment:

    • Operating Temperature: 0℃~50℃ (32℉~122℉)

    • Storage Temperature: -40℃~70℃ (-40℉~158℉)

    • Operating Humidity: 10%~90% RH non-condensing

    • Storage Humidity: 5%~90% RH non-condensing

  • Certifications: CE, FCC, RoHS
