Integrated into Omada SDN: Seamlessly integrates with TP-Link's Omada Software Defined Networking (SDN) platform, enabling 100% centralized cloud management of gateways, access points, and switches. This allows for remote and centralized control of your entire network in Islamabad, anytime, anywhere, through the Omada app or web UI.

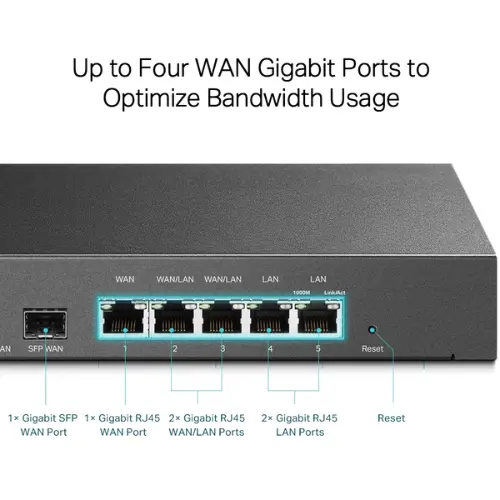

Flexible Multi-WAN Gigabit Ports: Equipped with versatile port configurations including 1 Gigabit SFP WAN port (for fiber connectivity), 1 Gigabit RJ45 WAN port, and 2 Gigabit RJ45 WAN/LAN ports, along with 2 fixed Gigabit RJ45 LAN ports. This provides up to 4 WAN ports, allowing for multiple internet access types and optimized bandwidth usage for businesses in Islamabad.
Intelligent Load Balancing: Features advanced load balancing strategies that distribute data streams according to the bandwidth proportion of each WAN port. This maximizes the utilization rate of multi-line broadband, ensuring efficient and stable internet performance. Supports Application Optimized Routing for specific traffic types.
Highly Secure VPN: Supports multiple VPN protocols including IPSec, OpenVPN, PPTP, and L2TP (L2TP over IPSec). With a powerful hardware design, it can establish up to 100 IPSec VPN tunnels (LAN-to-LAN, Client-to-LAN), 50 OpenVPN tunnels, 50 L2TP tunnels, and 50 PPTP VPN connections, providing secure site-to-site and client-to-site connectivity for remote workers and branch offices in Islamabad.
Abundant Security Features: Offers comprehensive security with a robust SPI Firewall, DoS (Denial of Service) attack defense (TCP/UDP/ICMP Flood, Ping of Death), IP/MAC/URL Filtering, and IP-MAC Binding. It also includes VLAN support for network segmentation and security.
Centralized Cloud Management: Beyond Omada SDN integration, it offers free cloud access for convenient management and monitoring. Zero-Touch Provisioning (ZTP) simplifies deployment in large networks.
High Performance Hardware: Powered by a 64-bit dedicated dual-core processor and 512MB DDR3 high-speed memory, ensuring outstanding performance with a concurrent session capacity of 150,000 and new sessions/second up to 5,500.
Professional Lightning Protection: Built with 4 kV lightning protection, safeguarding the device and your network infrastructure from electrical surges, providing enhanced durability and reliability in Islamabad's varied climate.
Flexible Traffic Control: Features IP-based Bandwidth Control and Session Limit to effectively manage network resources and prioritize critical applications.
Desktop/Rack-Mountable Design: Durable steel enclosure with a compact design, suitable for desktop placement or can be rack-mounted for professional installations.
Interfaces:
1 times Fixed Gigabit SFP WAN Port
1 times Fixed Gigabit RJ45 WAN Port
2 times Changeable Gigabit RJ45 WAN/LAN Ports
2 times Fixed Gigabit RJ45 LAN Ports
Buttons: Reset Button

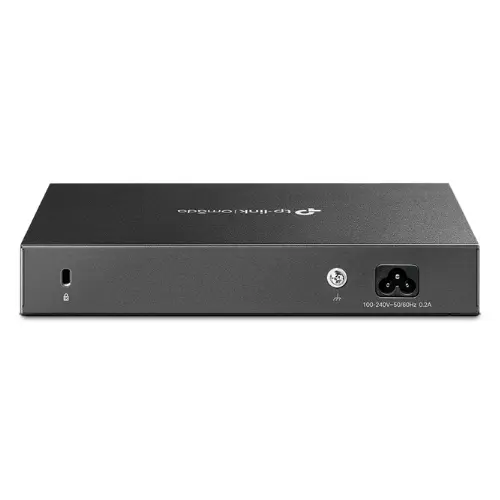

Power Supply: 100–240 V~50/60 Hz (Internal Power Supply)
Flash: SPI 4MB + NAND 128MB
DRAM: 512MB
LED Indicators: PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions (W times D times H): 8.9 times 5.2 times 1.4 in (226 times 131 times 35 mm)
Performance:
Concurrent Sessions: 150,000
New Sessions/Second: 5,500
IPsec VPN Throughput (AES256): 291.6 Mbps
OpenVPN Throughput: 34.2 Mbps
L2TP VPN Throughput (Encrypted): 202.3 Mbps
PPTP VPN Throughput (Encrypted): 115.6 Mbps
WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
VPN Protocols: IPSec, OpenVPN, PPTP, L2TP (L2TP over IPSec)
VPN Tunnel Capacity:
IPSec VPN Tunnels: Up to 100
OpenVPN Tunnels: Up to 50
L2TP VPN Tunnels: Up to 50
PPTP VPN Tunnels: Up to 50
Security Features: SPI Firewall, DoS Defense, IP/MAC/URL Filtering, IP-MAC Binding, ALG (FTP, H.323, SIP, IPSec, PPTP)
Load Balancing: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
Access Control: IP/Port/Protocol/Domain Name Filtering
Traffic Control: IP-based Bandwidth Control, Session Limit
Management: Omada App, Centralized Management, Cloud Access, Web UI, Remote Management, SNMP, System Log, Diagnostics
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents: TP-Link TL-ER7206 Router, Power Cord, Quick Installation Guide, Rackmount Kit (may vary by region).
