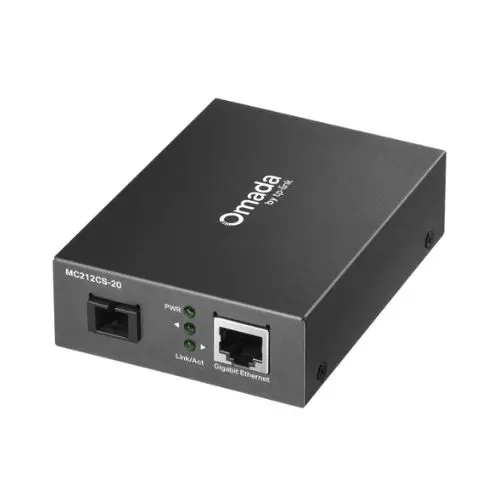

TP-Link MC212CS-20 Gigabit WDM Media Converter – 1 Gbps RJ-45 to SC Fiber (20 km Single-Mode)

A compact gigabit media converter that converts 10/100/1000 Mbps copper (RJ-45) to single-mode fiber (SC) over a single strand using WDM technology — supports fiber runs up to 20 km.
  • Converts between 1 Gbps copper Ethernet and SC single-mode fiber
  • Uses WDM (Wavelength-Division Multiplexing) technology
  • Supports link distances up to 20 km for the MC212CS-20 model.
  • Auto MDI/MDIX RJ-45 port, supports Auto-Negotiate, compact size
Product Code: MC212CS-20
Brand: Tp-link
Warranty: 1 Year
Availability: In Stock
Rs. 9,700
Specification Category Details
Model MC212CS-20
Copper Interface 1 × RJ-45 10/100/1000 Mbps (Auto-MDI/MDIX)
Fiber Interface 1 × SC/UPC single-mode fiber port
Distance (Single-Strand WDM) Up to ~20 km
Wavelengths Tx: 1310 nm / Rx: 1550 nm (or variant depending version)
Supported Standards IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x
LEDs PWR, Link/Act
Power Supply External adapter, 9 V / 0.6 A typical
Dimensions (W × D × H) Approx. 94.5 × 73 × 27 mm
Operating Temp -5 °C to 50 °C
Storage Temp -40 °C to 70 °C
Operating Humidity 10 % to 90 % non-condensing
Storage Humidity 5 % to 90 % non-condensing
