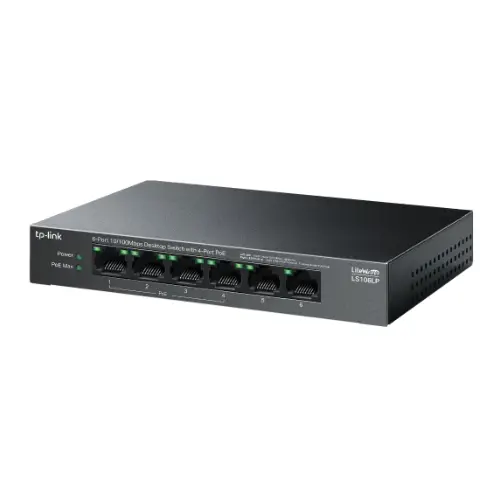

TP Link LS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE

TP-Link LS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE

Key Features:

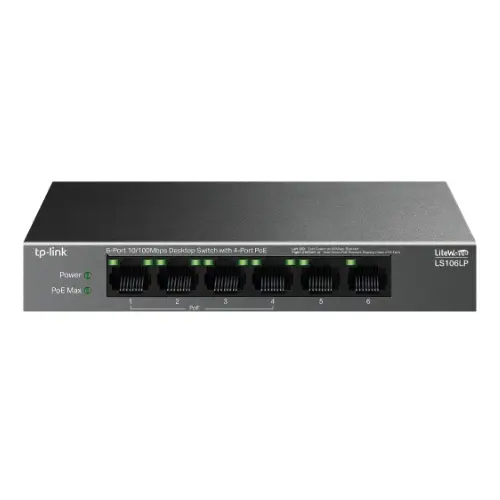

• 6 Fast Ethernet Ports with 4 PoE+ Ports: Features 6 times 10/100 Mbps RJ45 ports, with Ports 1-4 supporting the PoE+ standard (802.3at/af). This allows for flexible deployment of PoE-compatible devices such as IP cameras, wireless access points, and IP phones, supplying both power and data over a single Ethernet cable.

• 60 W PoE+ Power Budget: Provides a total PoE power budget of 60 W across the four PoE+ ports. Each PoE+ port supports up to 30 W output, ensuring sufficient power for a wide range of standard and high-power PoE devices.

• Up to 250 m PoE Transmission (Extend Mode): With the "Extend Mode" enabled (via a physical button), the PoE transmission distance can reach up to 250 meters (820 feet) for ports 1-4. This is particularly advantageous for surveillance camera deployments in large or remote areas, reducing cable infrastructure costs. Note: The speed of the ports in Extend Mode will downgrade to 10 Mbps.

• Priority Mode for Critical Devices: A dedicated "Priority Mode" (via a physical button) ensures that high-priority ports (Port 1 and Port 2) receive power preferentially in scenarios where the total power consumption exceeds the budget. This guarantees stable operation for critical devices.

• PoE Auto Recovery: Automatically detects and reboots unresponsive or dropped PoE-powered devices, enhancing system reliability and minimizing the need for manual intervention, especially in surveillance applications.

• Plug and Play: Offers hassle-free installation with no configuration required. Simply connect your Ethernet cables and power adapter for instant network expansion and PoE power delivery.

• Fanless Quiet Operation: The fanless design ensures silent operation, making it ideal for noise-sensitive environments such as homes, offices, and residential areas.

• Durable Metal Casing: Features a robust and durable metal casing, providing enhanced protection for internal components and contributing to a longer product lifespan.

• Desktop/Wall-Mounting Design: Its compact and versatile design allows for flexible placement on a desktop or convenient wall-mounting to optimize space and cable management.

• Unmanaged Switch: A simple and straightforward unmanaged switch, requiring no complex setup, software, or ongoing management, making it user-friendly for basic network expansion and PoE power delivery.

• Green Technology: Incorporates energy-efficient technology that intelligently adjusts power consumption based on the link status and cable length, helping to reduce energy consumption and operational costs.

• IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.

Technical Specifications:

• Interface: 6 times 10/100 Mbps RJ45 Ports (4 times 10/100 Mbps 802.3at/af PoE+ Ports), AUTO Negotiation, AUTO MDI/MDIX

• PoE Ports (RJ45):

  • Standard: 802.3at/af compliant

  • PoE Ports: Ports 1–4

  • Power Output per Port: Up to 30 W

  • PoE Power Budget: 60 W

• Network Media:

  • 10BASE-T: UTP category 3, 4, 5 cable (le 100m)

  • 100BASE-TX: UTP category 5, 5e cable (le 100m)

• Fan Quantity: Fanless

• Installation: Desktop, Wall Mounting

• External Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)

• LED Indicators: Power, Link/Act, PoE Status, PoE MAX

• Dimensions (W times D times H): 3.9 times 3.9 times 1.0 in (100 times 98 times 25 mm)

• Max. Power Consumption:

  • 2.45 W (no PD connected)

  • 68.53 W (with 60 W PD connected)

• Max. Heat Dissipation:

  • 8.35 BTU/h (no PD connected)

  • 233.72 BTU/h (with 60 W PD connected)

• Switching Capacity: 1.2 Gbps

• Packet Forwarding Rate: 0.8928 Mpps

• MAC Address Table: 2K

• Jumbo Frame: 2 KB

• Transfer Method: Store and Forward

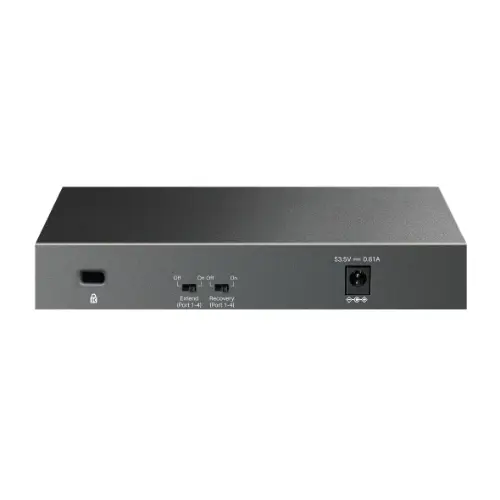

• Advanced Features: Extend Mode Button (Ports 1–4, up to 250 m PoE), Priority Mode Button (Ports 1–2), PoE Auto Recovery Button (Ports 1–4), Compatible With IEEE 802.3af/at Compliant PDs, Mac Address Auto-Learning and Auto-Aging, Green Technology.

• Certifications: CE, FCC, RoHS

• Environment:

  • Operating Temperature: 0℃~40℃ (32℉~104℉)

  • Storage Temperature: -40℃~70℃ (-40℉~158℉)

  • Operating Humidity: 10%~90% non-condensing

  • Storage Humidity: 5%~90% non-condensing

Package Contents (Typical):

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE (LS106LP)

• Power Adapter

• Installation Guide
