5 Fast Ethernet Ports with 4 PoE Ports: Features 5 times 10/100 Mbps RJ45 ports, with Ports 1-4 supporting Power over Ethernet (PoE). This allows easy connection and power supply for PoE-compatible devices like IP cameras, access points, and IP phones via a single Ethernet cable.
41 W PoE Power Budget: Provides a total PoE power budget of 41 W across the four PoE ports. Each PoE port supports up to 15.4 W output, compliant with the 802.3af PoE standard.
Up to 250 m PoE Transmission (Extend Mode): With the "Extend Mode" enabled (via a physical button), the PoE transmission distance can reach up to 250 meters (820 feet) for ports 1-4. This is ideal for surveillance camera deployment in larger areas where power outlets are far from the devices. Note: The speed of the ports in Extend Mode will downgrade to 10 Mbps.
PoE Auto Recovery: Automatically detects and reboots unresponsive or dropped PoE-powered devices, ensuring reliable operation and minimizing manual intervention.
Plug and Play: Offers hassle-free installation with no configuration required. Simply plug in your Ethernet cables and power adapter for instant network expansion.
Fanless Quiet Operation: The fanless design ensures silent operation, making it suitable for noise-sensitive environments such as homes and offices.
Durable Metal Casing: Features a robust and durable metal casing, providing enhanced protection and a longer product lifespan compared to plastic case switches.
Desktop/Wall-Mounting Design: Its compact design allows for flexible placement on a desktop or convenient wall-mounting.
Unmanaged Switch: Simple and straightforward unmanaged switch, requiring no complex setup or software for basic network expansion and PoE power delivery.
Green Technology: Incorporates energy-efficient technology that adjusts power consumption according to the link status and cable length, helping to save energy.
IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.
Interface: 5 times 10/100 Mbps RJ45 Ports (4 times 10/100 Mbps 802.3af PoE Ports), AUTO Negotiation, AUTO MDI/MDIX
PoE Ports (RJ45):
Standard: 802.3af compliant
PoE Ports: Ports 1–4
Power Output per Port: Up to 15.4 W
PoE Power Budget: 41 W
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
Fan Quantity: Fanless
Installation: Desktop, Wall Mounting
External Power Supply: External Power Adapter (Output: 53.5VDC / 0.81A)

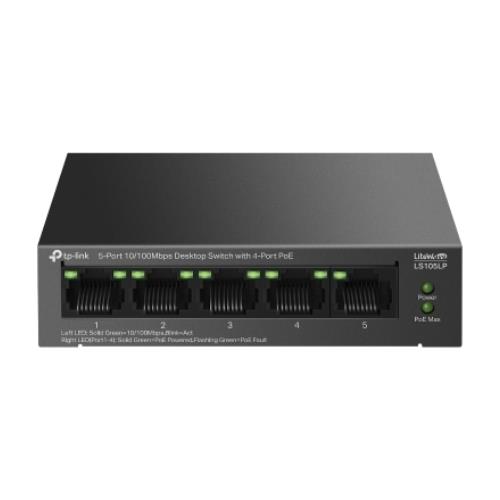

LED Indicators: Power, Link/Act, PoE Status, PoE MAX
Dimensions (W times D times H): 3.9 times 3.9 times 1.0 in (100 times 98 times 25 mm)
Max. Power Consumption:
2.40 W (no PD connected)
46.45 W (with 41 W PD connected)
Max. Heat Dissipation:
8.15 BTU/h (no PD connected)
157.93 BTU/h (with 41 W PD connected)
Switching Capacity: 1 Gbps
Packet Forwarding Rate: 0.744 Mpps
MAC Address Table: 2K
Jumbo Frame: 2 KB
Transfer Method: Store and Forward
Advanced Features: Extend Mode Button (Ports 1–4, up to 250 m PoE), PoE Auto Recovery Button (Ports 1–4), Compatible With IEEE 802.3af Compliant PDs, Mac Address Auto-Learning and Auto-Aging, Green Technology.
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

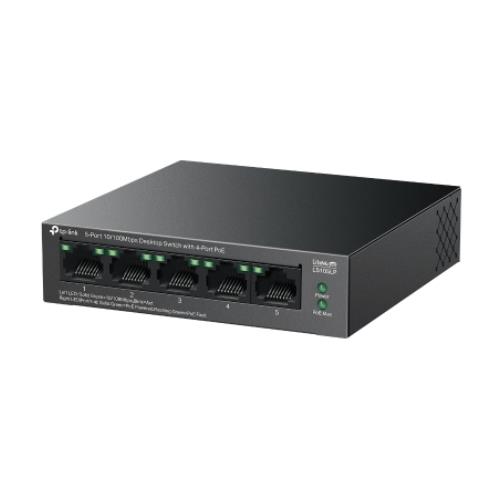

5-Port 10/100Mbps Desktop Switch with 4-Port PoE (LS105LP)
Power Adapter
Installation Guide
