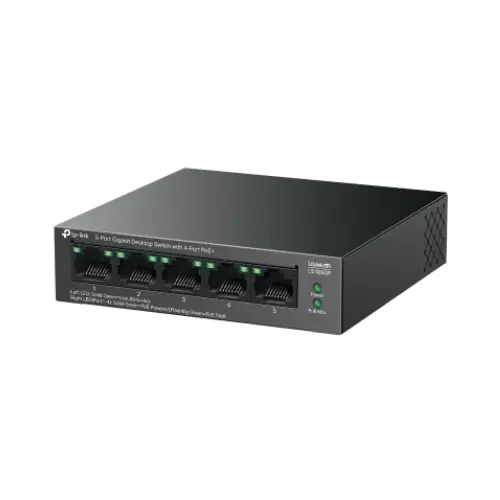

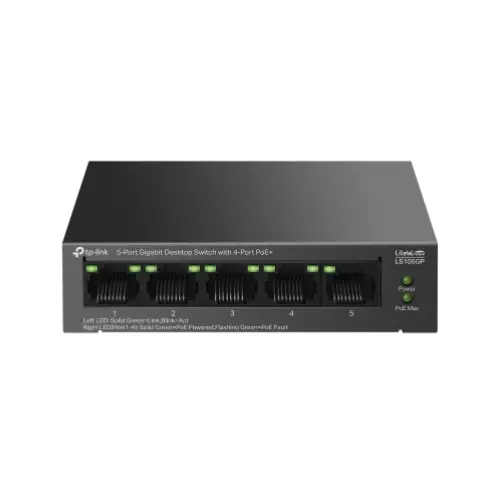

5 Gigabit Ports with 4 PoE+ Ports: Features five 10/100/1000 Mbps RJ45 ports, with Ports 1–4 supporting the PoE+ standard (802.3at/af). This allows for flexible deployment of PoE-compatible devices like IP cameras, wireless access points, and IP phones, delivering both power and data over a single Ethernet cable. The remaining non-PoE Gigabit port can be used for uplink to your router or NVR.
65 W PoE+ Power Budget: Offers a total PoE power budget of 65 W across the four PoE+ ports. Each PoE+ port supports up to 30 W output, ensuring ample power for a wide range of standard and high-power PoE devices.

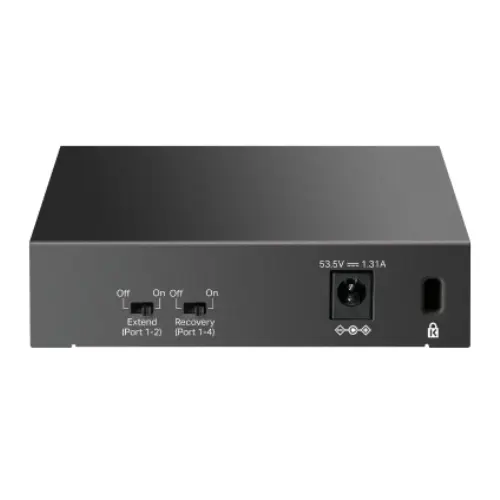

Up to 250 m PoE Transmission (Extend Mode): With the "Extend Mode" enabled (via a physical button), the PoE transmission distance can reach up to 250 meters (820 feet) for ports 1–4. This is particularly beneficial for surveillance camera deployments in larger or remote areas, significantly reducing cable infrastructure costs. Note that the speed of the ports in Extend Mode will downgrade to 10 Mbps.
Priority Mode for Critical Devices: A dedicated "Priority Mode" (via a physical button) ensures that high-priority ports (Port 1 and Port 2) receive power preferentially in scenarios where the total power consumption might exceed the budget. This guarantees stable operation for your most critical devices.
Isolation Mode for Enhanced Security: When "Isolation Mode" is activated (via a physical button), the PoE ports (Port 1–4) are isolated from each other. This prevents broadcasting storms and enhances security within your network, particularly useful for isolating surveillance camera traffic.
PoE Auto Recovery: Automatically detects and reboots unresponsive or dropped PoE-powered devices, enhancing system reliability and minimizing the need for manual intervention, especially crucial in surveillance applications.
Plug and Play: Offers hassle-free installation with no configuration required. Simply connect your Ethernet cables and the power adapter for instant network expansion and PoE power delivery.
Fanless Quiet Operation: The fanless design ensures silent operation, making it ideal for noise-sensitive environments such as homes, offices, and recording studios.
Durable Metal Casing: Features a robust and durable metal casing, providing enhanced protection for internal components and contributing to a longer product lifespan.
Desktop/Wall-Mounting Design: Its compact and versatile design allows for flexible placement on a desktop or convenient wall-mounting to optimize space and cable management.
Unmanaged Switch: A simple and straightforward unmanaged switch, requiring no complex setup, software, or ongoing management, making it user-friendly for basic network expansion and PoE power delivery.
Green Technology: Incorporates energy-efficient technology that intelligently adjusts power consumption based on the link status and cable length, helping to reduce energy consumption and operational costs.
IEEE 802.3x Flow Control: Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, which helps alleviate traffic congestion and ensures reliable data transfer.
Interface: 5 times 10/100/1000 Mbps RJ45 Ports (4 times 10/100/1000 Mbps 802.3at/af PoE+ Ports), AUTO Negotiation, AUTO MDI/MDIX
PoE Ports (RJ45):
Standard: 802.3at/af compliant
PoE Ports: Ports 1–4
Power Output per Port: Up to 30 W
PoE Power Budget: 65 W
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (le 100m)
100BASE-TX: UTP category 5, 5e cable (le 100m)
1000BASE-T: UTP category 5, 5e, 6 or higher cable (le 100m)
Fan Quantity: Fanless
Installation: Desktop, Wall Mounting
External Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A or 53.5VDC / 1.5A depending on version)
LED Indicators: Power, Link/Act, PoE Status, PoE MAX
Dimensions (W times D times H): 3.9 times 3.9 times 1.0 in (100 times 98 times 25 mm)
Max. Power Consumption:
2.89 W (no PD connected)
75.5 W (with 65 W PD connected)
Max. Heat Dissipation:
9.86 BTU/h (no PD connected)
257.65 BTU/h (with 65 W PD connected)
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 2K
Jumbo Frame: 16 KB
Transfer Method: Store and Forward
Advanced Features: Extend Mode Button (Ports 1–4, up to 250 m PoE), Priority Mode Button (Ports 1–2), Isolation Mode Button (Ports 1–4), PoE Auto Recovery Button (Ports 1–4), Compatible With IEEE 802.3af/at Compliant PDs, Mac Address Auto-Learning and Auto-Aging, Green Technology.
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
