AC1200 Dual-Band Wi-Fi for Islamabad: Delivers simultaneous Wi-Fi speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, totaling 1167 Mbps, providing high-speed and stable connectivity for diverse indoor and outdoor applications in Islamabad.
Gigabit Ethernet Port for High Throughput in Islamabad: Equipped with a Gigabit Ethernet port, ensuring high-speed wired backhaul to support the fast wireless performance, essential for demanding network environments in Islamabad.
Indoor/Outdoor Versatility for Islamabad: Designed for flexible deployment with a weatherproof enclosure, making it suitable for extending Wi-Fi coverage to large outdoor areas like gardens, patios, and public spaces, as well as indoor environments in Islamabad.
IP65 Weatherproof Enclosure for Islamabad Climate: Features a robust IP65-rated enclosure, providing comprehensive protection against dust ingress and water jets, ensuring reliable operation in harsh outdoor conditions including rain, sun, and varied temperatures common in Islamabad.
Lightning Protection & ESD Protection for Islamabad Security: Integrated 6KV Lightning Protection and 15KV ESD Protection safeguard the device and connected network from electrical surges and lightning strikes, enhancing reliability and durability in outdoor deployments in Islamabad.
MU-MIMO Technology for Higher Capacity in Islamabad: Utilizes 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology to simultaneously communicate with multiple devices, significantly enhancing network efficiency and throughput, particularly in high-density user scenarios in Islamabad.
Omada Mesh Technology for Flexible Deployment in Islamabad: Supports Omada Mesh technology, allowing EAPs to wirelessly connect to each other to expand Wi-Fi coverage effortlessly. This provides flexible and convenient deployment options, especially in areas where laying Ethernet cables is challenging in Islamabad.
Seamless Roaming (802.11k/v) for Uninterrupted Connectivity in Islamabad: Ensures smooth transitions for clients as they move between access points, maintaining uninterrupted video streams and voice calls, ideal for large areas with extensive coverage needs in Islamabad.
PoE Powered (802.3af/at & Passive PoE) for Easy Installation in Islamabad: Supports both standard 802.3af/at PoE and Passive PoE (PoE adapter included), offering versatile power options and simplifying installation by allowing power and data to be delivered over a single Ethernet cable, reducing cabling complexity in Islamabad.
Integrated into Omada SDN for Centralized Management in Islamabad: Seamlessly integrates into TP-Link's Omada Software Defined Networking (SDN) platform, enabling 100% centralized cloud management of access points, switches, and routers from a single, unified interface, accessible anywhere in Islamabad.
Cloud Access & Omada App for Remote Management in Islamabad: Offers convenient cloud access via the Omada Hardware/Software Controller or the intuitive Omada App, allowing administrators to manage and monitor their outdoor network remotely from any location, ensuring flexibility for businesses in Islamabad.
Secure Guest Network with Captive Portal for Islamabad Businesses: Provides robust guest network capabilities with multiple authentication options, including Captive Portal (SMS, Facebook Wi-Fi, Voucher), ensuring secure and customizable guest access for public or business outdoor areas in Islamabad.
Detachable Omni-Directional Antennas: Features two external detachable omni-directional antennas (2.4GHz: 2x3dBi, 5GHz: 2x4dBi), allowing for antenna upgrades or adjustments based on specific coverage requirements.

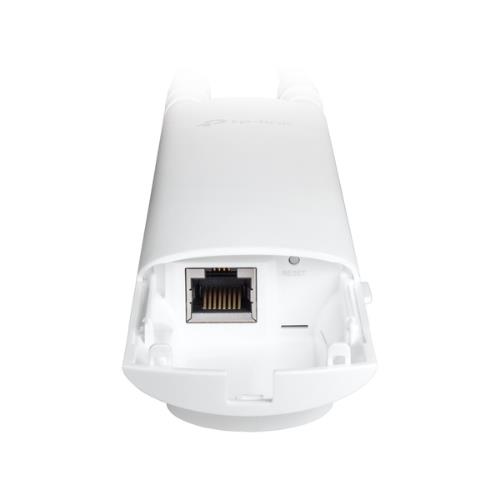

Interface: 1 × Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE and Passive PoE)
Button: Reset
Power Supply:
802.3af/at PoE (Alternative A)
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: 10.5 W
Dimensions (W x D x H):
Without antenna & mounting kit: 8.5 × 1.8 × 1.1 in (215.7 × 45 × 37.7 mm)
With antenna & mounting kit: 15.9 × 3.6 × 2.2 in (403.8 × 90.7 × 55.2 mm)
Antenna Type: 2 × External Detachable Omni-directional Antennas
2.4 GHz: 2 × 3 dBi
5 GHz: 2 × 4 dBi
Weatherproof Enclosure: IP65

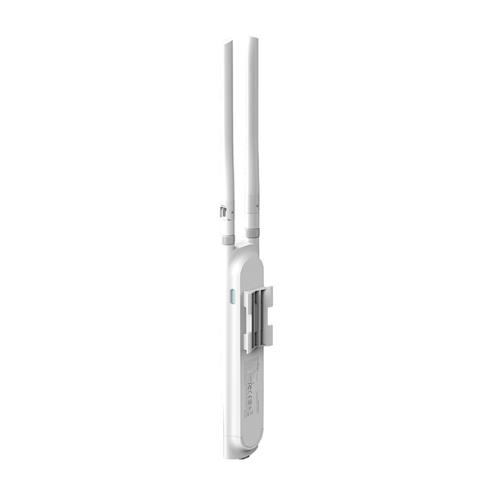

Mounting: Pole / Wall Mounting (Kits included)
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions: Multiple SSIDs (Up to 16, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjustable on dBm), QoS (WMM), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, MU-MIMO, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power:
CE: <20 dbm="" _28_2.4="" _ghz2c_="" _eirp29_2c_="" /><25 dbm="" _28_5="" _ghz2c_="" />
FCC: <23 dbm="" _28_2.4="" _ghz29_2c_="" /><22 dbm="" _28_5="" />
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada App, Cloud Access (via controller)
System Requirements: Microsoft Windows XP, Vista, Windows 7, 8, 10, 11, Mac OS, Linux
Certifications: CE, FCC, RoHS
Environment:
Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

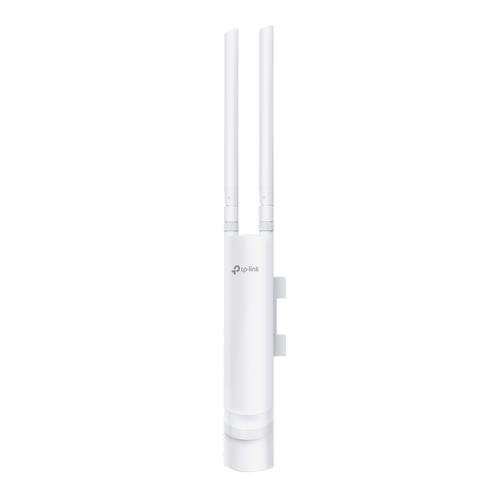

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point EAP225-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide
