300Mbps Wireless N Speed: Provides stable 2.4 GHz Wi-Fi connectivity with speeds up to 300Mbps, suitable for general internet access and client device connectivity in business settings.
Flexible PoE (802.3af) for Installation: Supports standard IEEE 802.3af Power over Ethernet, allowing power and data transmission over a single Ethernet cable for simplified installation directly into standard wall junction boxes, especially in locations where power outlets are limited.

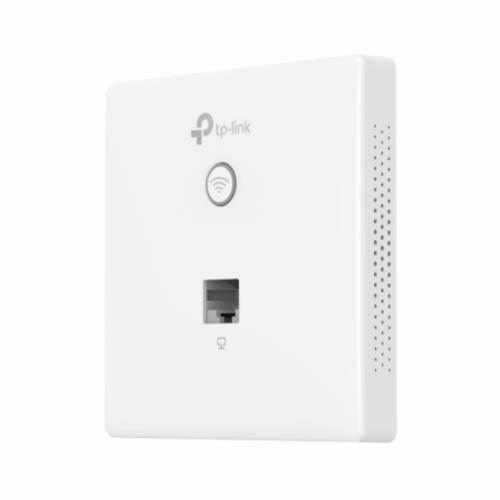

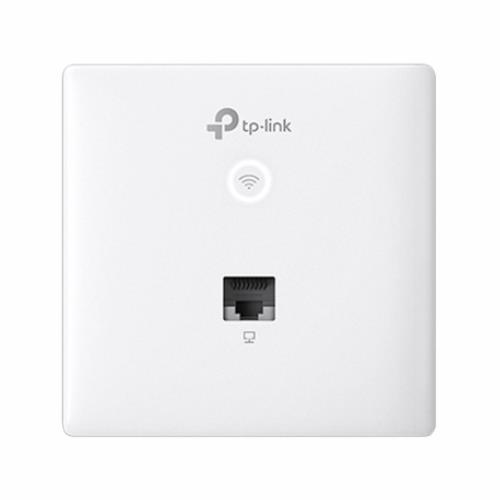

Wall-Plate Mount Design for Discreet Integration: Features a sleek, minimalist design that allows for easy and discreet mounting directly into a standard EU-type or 86mm wall junction box, blending seamlessly into any interior decor for a clean, professional appearance.
Centralized Management with Omada SDN: Fully integrated into TP-Link's Omada SDN platform, enabling 100% centralized cloud management via Omada Software Controller, Omada Hardware Controller (OC200/OC300), or the Omada App. This simplifies configuration, real-time monitoring, and maintenance of your entire network from a single interface.
Secure Guest Network with Captive Portal: Offers advanced guest network capabilities with multiple authentication options through a customizable Captive Portal, ensuring secure and managed guest Wi-Fi access for businesses.
Multiple SSIDs for Network Segmentation: Supports up to 8 SSIDs, allowing administrators to create distinct wireless networks for different user groups (e.g., employees, guests, IoT devices), enhancing security and streamlining network management.
Enterprise-Class Wi-Fi Security: Incorporates robust wireless security features including WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK, 802.1X, MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, and Rogue AP Detection, safeguarding your network from potential threats.
VLAN Support for Enhanced Security: Supports VLANs, allowing network segmentation and improved security for different user groups or applications.
Compact Design with Internal Antennas: Its compact wall-plate form factor with internal omni-directional antennas provides effective coverage while maintaining a low profile.
Interface:

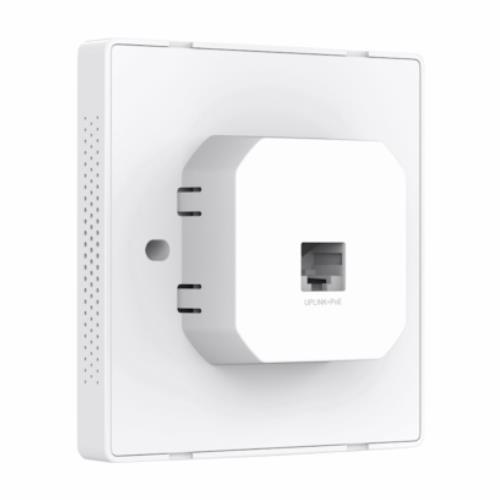

Uplink: 1 × 10/100 Mbps Ethernet Port (Supports IEEE 802.3af PoE)
Downlink: 1 × 10/100 Mbps Ethernet Port
Button: LED/Wi-Fi Button, RESET
Power Supply: IEEE 802.3af PoE
Max. Power Consumption: 2.8 W
Dimensions (W x D x H): 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna Type: Internal 2 × 1.8 dBi Omni-directional
Mounting: Wall Plate Mounting (compatible with standard EU-type data wall-box or 86 mm wall junction box)
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4–2.4835 GHz
Signal Rate:
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Wireless Functions: Multiple SSIDs (Up to 8), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client.
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Local LAN port based VLAN, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK.
Transmission Power:
CE: le20 dBm (2.4 GHz)
FCC: le21 dBm
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada App, Cloud Access (via controller)
System Requirements: Microsoft Windows 11/10/8.1/8/7/Vista/XP, Mac OS, Linux
Certifications: CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents (Typical):
300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
Installation Guide
Mounting Screws
