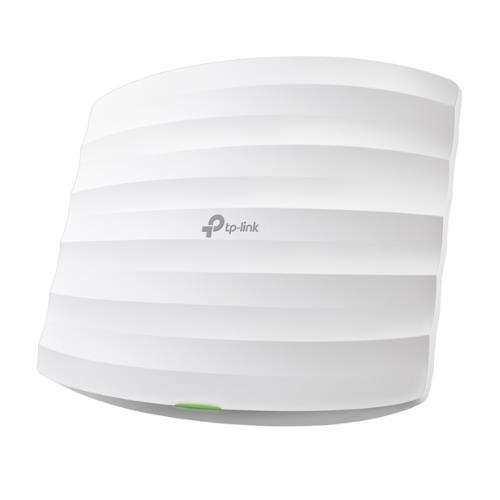

TP Link EAP110 300Mbps Wireless N Ceiling Mount Access Point

TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point

Key Features:

300Mbps Wireless N Speed for Islamabad: Provides reliable 2.4 GHz Wi-Fi connectivity with speeds up to 300Mbps, suitable for general internet usage, email, and light-to-moderate data transfers in business settings across Islamabad.

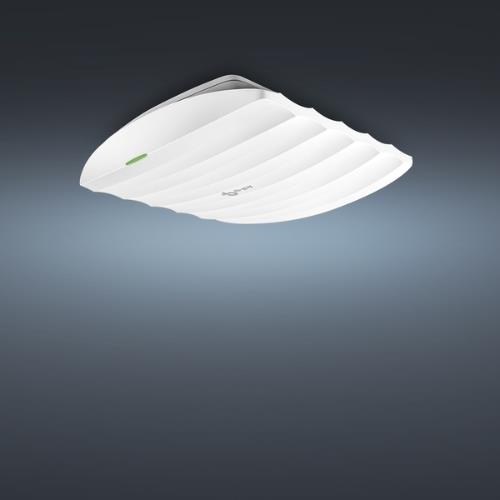

Ceiling Mount Design for Seamless Integration in Islamabad: Features a sleek, unobtrusive design that allows for easy mounting on walls or ceilings, blending seamlessly into any interior decor for a professional look in Islamabad offices, hotels, or schools.
Passive PoE Support for Effortless Deployment in Islamabad: Supports Passive Power over Ethernet (PoE), allowing power and data to be delivered simultaneously over a single Ethernet cable. This simplifies installation and reduces cabling complexity, making deployment in various locations in Islamabad more flexible. (PoE Adapter Included).
Centralized Management with Omada Software Controller for Islamabad: Compatible with TP-Link's free Omada Software Controller, enabling centralized management of multiple EAPs, simplifying configuration, real-time monitoring, and batch firmware updates from a single PC in Islamabad.
Secure Guest Network with Captive Portal for Islamabad Businesses: Offers a secure guest network with multiple authentication options, including Captive Portal, SMS, and Facebook Wi-Fi, perfect for businesses in Islamabad like hotels, cafes, and retail stores to provide secure and managed guest access.
Multiple SSIDs for Segmented Network in Islamabad: Supports up to 8 SSIDs, allowing administrators to create multiple separate wireless networks for different user groups (e.g., employees, guests, IoT devices), enhancing security and network management in Islamabad.
Enterprise-Class Wi-Fi Security for Islamabad: Incorporates robust wireless security features including WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK, 802.1X, MAC Address Filtering, and Rogue AP Detection to protect your network in Islamabad from threats.
Load Balance for Optimized Performance in Islamabad: Ensures smooth network experiences for large numbers of users by distributing client connections evenly across multiple access points, optimizing performance in high-density environments in Islamabad.
Compact Design with Internal Antennas: Its compact form factor (189.5 × 170.5 × 29.7 mm) with internal 2x2 4dBi omni-directional antennas provides good coverage while maintaining a low profile.

Technical Specifications:

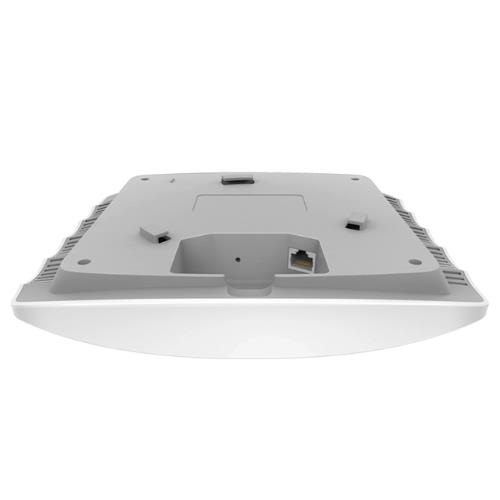

Interface: 1 × Fast Ethernet (RJ-45) Port (Supports Passive PoE)
Button: Reset
Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: 2.8 W
Dimensions (W x D x H): 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7mm)
Antenna Type: Internal 2 × 4dBi Omni-directional
Mounting: Ceiling / Wall Mounting (Kits included)
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.4–2.4835 GHz
Signal Rate:
- 11n: Up to 300Mbps (dynamic)
- 11g: Up to 54Mbps (dynamic)
- 11b: Up to 11Mbps (dynamic)
Wireless Functions: Multiple SSIDs (Up to 8), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power:
- CE: ≤19dBm(EIRP)
- FCC: ≤21dBm
Centralized Management: Omada Hardware Controller (OC300/OC200), Omada Software Controller, Omada App, Cloud Access (via controller)
System Requirements: Microsoft Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Certifications: CE, FCC, RoHS
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
