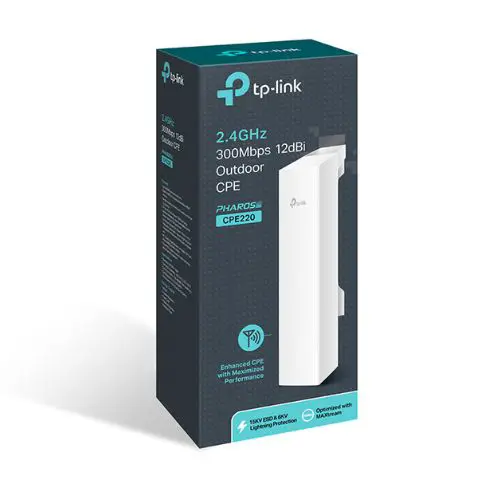

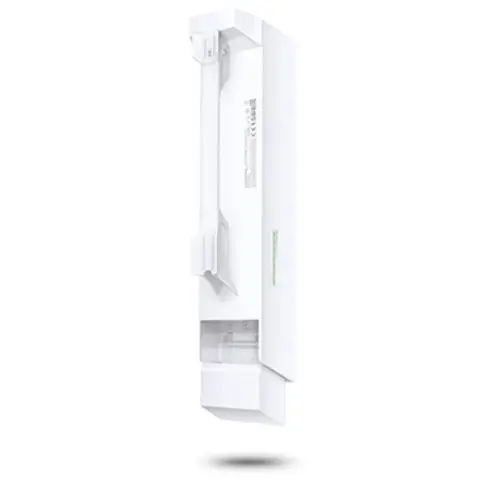

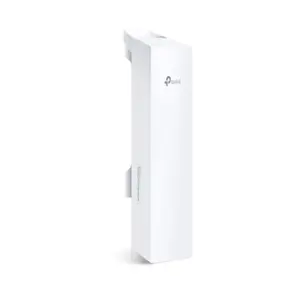

TP-Link CPE220 2.4 GHz 300 Mbps 12 dBi Outdoor CPE – High-Gain Directional Outdoor Wireless Bridge & Access Point

A robust outdoor wireless CPE offering 2.4 GHz up to 300 Mbps speed, built-in 12 dBi dual-polarised antenna and long-range coverage for outdoor wireless links. Ideal for point-to-point or point-to-multipoint outdoor networks.
  • 12 dBi 2×2 dual-polarised antenna for high gain and focused signals
  • Up to 300 Mbps wireless speed on 2.4 GHz and optimized for 13 km+ range
  • (AP / Client / Bridge / Repeater / WISP) with centralised management
  • Outdoor rugged design with IPX5 weatherproof casing
Product Code: CPE220
Brand: Tp-link
Warranty: 1 Year
Availability: In Stock
Rs. 13,900

Product Description (Technical Specification Table):

Specification CategoryDetails
Wireless StandardIEEE 802.11b/g/n (with Pharos MAXtream disabled)
Frequency2.4 GHz (2.4 – 2.483 GHz)
Wireless SpeedUp to 300 Mbps (40 MHz channel) / up to 144.4 Mbps (20 MHz) / up to 72.2 Mbps (10 MHz) / up to 36.1 Mbps (5 MHz)
Transmission PowerUp to 30 dBm / 1000 mW (adjustable in 1 dBm steps)
AntennaBuilt-in 12 dBi 2×2 dual-polarised directional antenna; beam width ~60° (H-plane) / ~30° (E-plane)
Processor & MemoryQualcomm Atheros 560 MHz CPU; 64 MB DDR2 RAM; 8 MB Flash

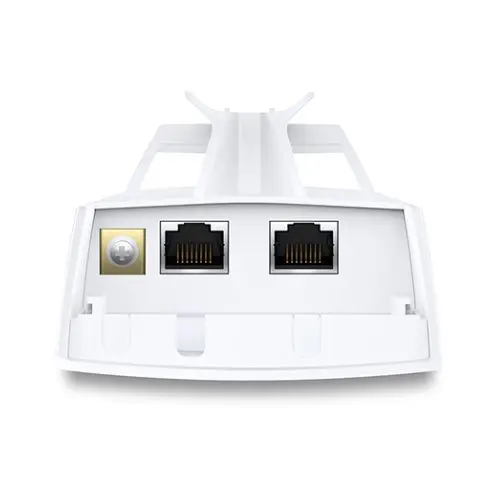

Interfaces1× 10/100 Mbps shielded Ethernet Port (LAN0, Passive PoE in) + 1× 10/100 Mbps shielded Ethernet Port (LAN1) + grounding terminal + reset button
Power SupplyPassive PoE via LAN0 (+4,5pins; –7,8pins); input voltage range 16-27 V DC
Max Power Consumption~10.8 Watts max
Enclosure / ProtectionASA-stabilised plastic; IPX5 waterproof certification; 15 kV ESD protection; 6 kV lightning protection
Operating Temperature / Humidity-40 °C to +70 °C (-40 °F to 158 °F); 10% - 90% non-condensing humidity
Dimensions276 × 79 × 60 mm (11″ × 3.1″ × 2.1″)
Operation ModesAP, Client, Bridge, Repeater, AP Router, AP Client Router (WISP)
Management & ToolsWeb-based management (PharOS), Pharos Control centralized software, SNMP v2c, spectrum analyser, speed test, remote reset via PoE adapter
